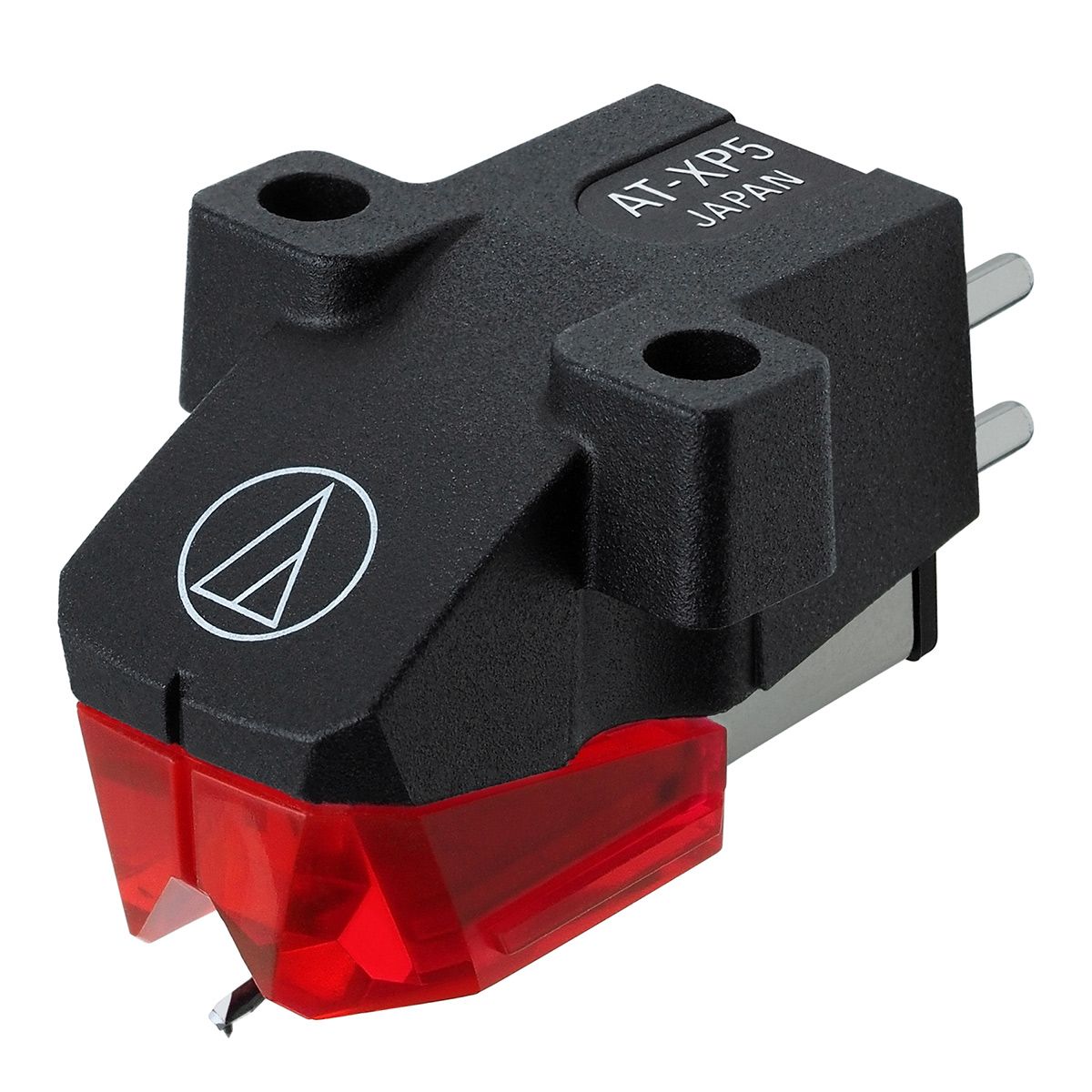

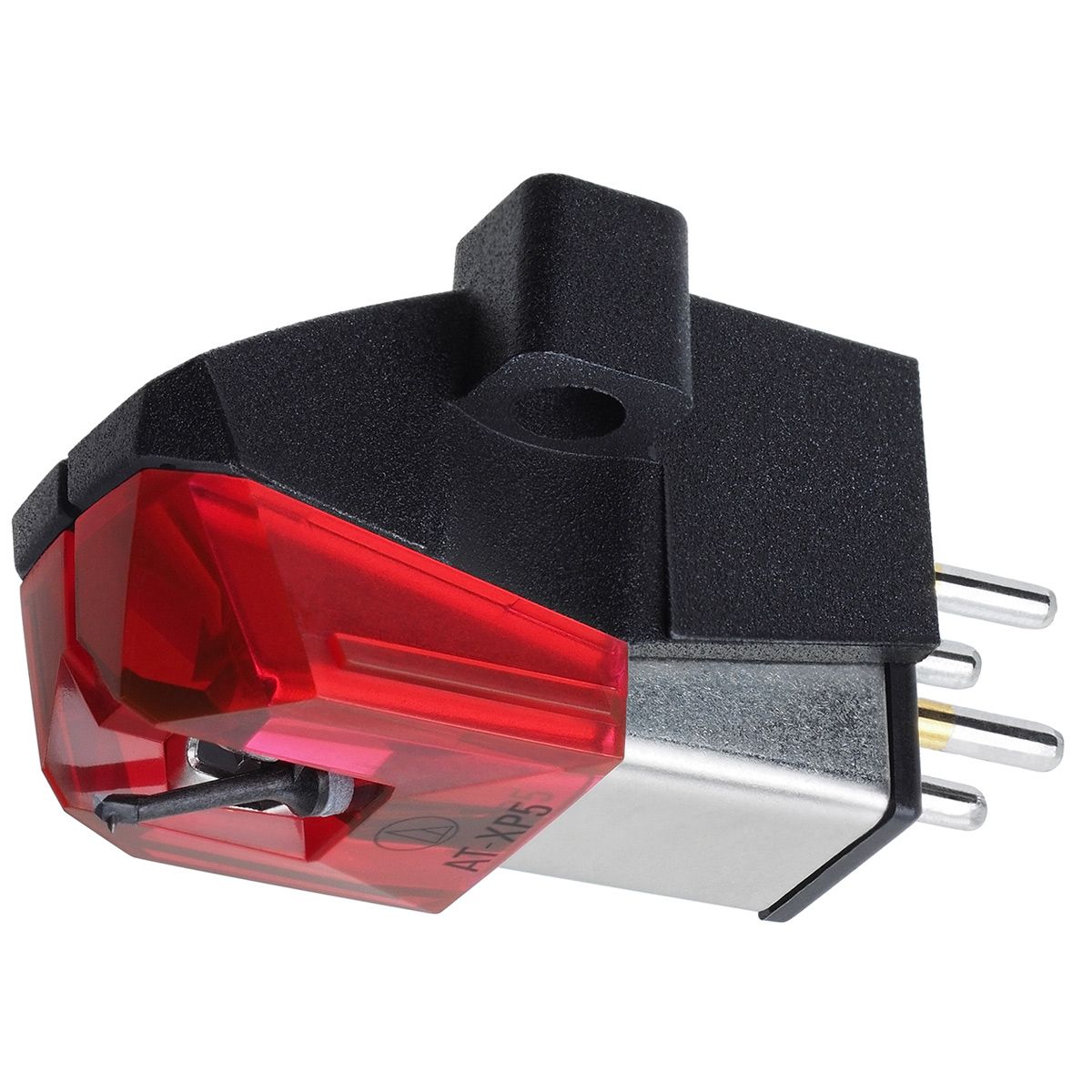

Audio-Technica AT-XP5 MM DJ Cartridge
1001342389
Starget Electronics is a leading online electronics store offering a wide range of gadg...
City: US, New York
Delivery
DHL express - Fast
1 day, Door-to-Door, Courier Delivered
from 26$
Pickup at your own expense
Tomorrow from 09:00 to 20:00, Store location
Free
Payment options
Cash, bank card, credit/installment payments, cashless payment for legal entities
Warranty and returns
Exchange/return of products of proper quality within 14 days
Official manufacturer's warranty: 12 months
Features
general
Item Weight
.07 pounds
Brand Name
Audio-Technica
Battery
No Battery Used
Dimensions (Overall)
2 inches (H) x 2 inches (W) x 4 inches (D)
Electronics Condition
New
Package Quantity
1
Description
The AT-XP5 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 5.5mV and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus the cartridge is specifically designed to provide maximum visibility of the stylus tip.
Features
•0.3 x 0.7 mil elliptical bonded stylus tip
•Highly-rigid polyphenylene sulfide (PPS)/glass fiber body
•5.5mV high-level output
•Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
•Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
•Design offers maximum visibility of the stylus tip
•Great tracking and channel separation for high-fidelity sound
What's in the Box
•AT-XP5 MM DJ Cartridge
Specifications
•Frequency response: 20 - 18000Hz
•Channel separation: 20dB at 1kHz
•Vertical tracking force: 2.0 - 4.0g (3.0g standard)
•Stylus construction: Bonded round shank
•Recommended load impedance: 47000 ohms
•Output: 5.5mV (1kHz 5cm/sec)
•Channel balance: 2.0dB (1.kHz)

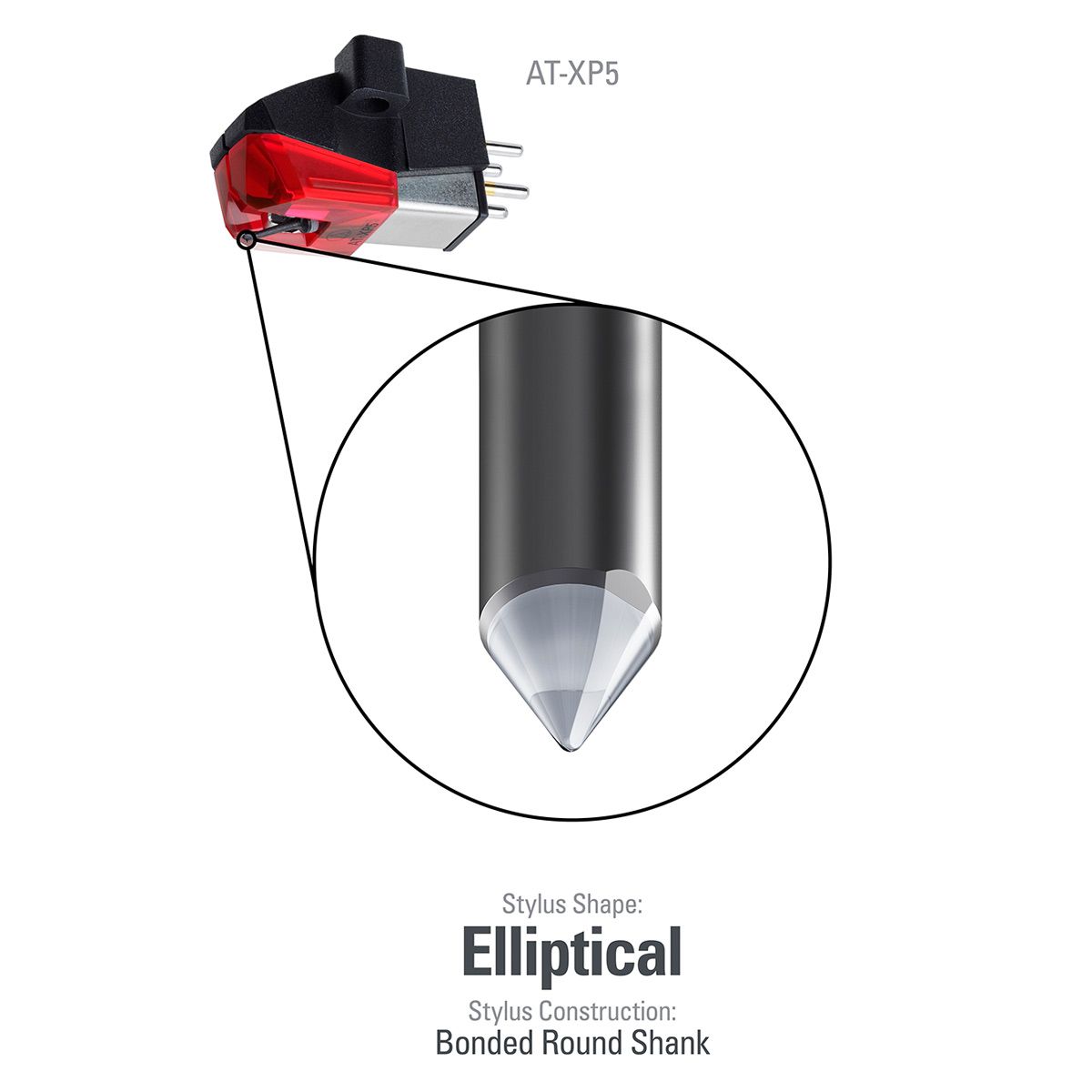

•Stylus shape: 0.3 x 0.7 mil elliptical
•Cantilever: Carbon fiber-reinforced ABS
•Mount: Half-inch
•Replacement stylus: ATN-XP5
•Coil impedance: 6.7k ohms (1kHz)
•DC resistance: 990 ohms
•Recommended load capacitance: 100 to 200pF
•Coil inductance: 1.0H (1kHz)
•Vertical tracking angle: 20
•Dimensions (H x W x D): 0.68" x 0.67" x 1.2"
•Weight: 0.22 ounces
Features
•0.3 x 0.7 mil elliptical bonded stylus tip
•Highly-rigid polyphenylene sulfide (PPS)/glass fiber body
•5.5mV high-level output
•Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
•Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
•Design offers maximum visibility of the stylus tip
•Great tracking and channel separation for high-fidelity sound
What's in the Box
•AT-XP5 MM DJ Cartridge
Specifications
•Frequency response: 20 - 18000Hz
•Channel separation: 20dB at 1kHz
•Vertical tracking force: 2.0 - 4.0g (3.0g standard)
•Stylus construction: Bonded round shank
•Recommended load impedance: 47000 ohms
•Output: 5.5mV (1kHz 5cm/sec)
•Channel balance: 2.0dB (1.kHz)
•Stylus shape: 0.3 x 0.7 mil elliptical
•Cantilever: Carbon fiber-reinforced ABS
•Mount: Half-inch
•Replacement stylus: ATN-XP5
•Coil impedance: 6.7k ohms (1kHz)
•DC resistance: 990 ohms
•Recommended load capacitance: 100 to 200pF
•Coil inductance: 1.0H (1kHz)
•Vertical tracking angle: 20
•Dimensions (H x W x D): 0.68" x 0.67" x 1.2"
•Weight: 0.22 ounces
