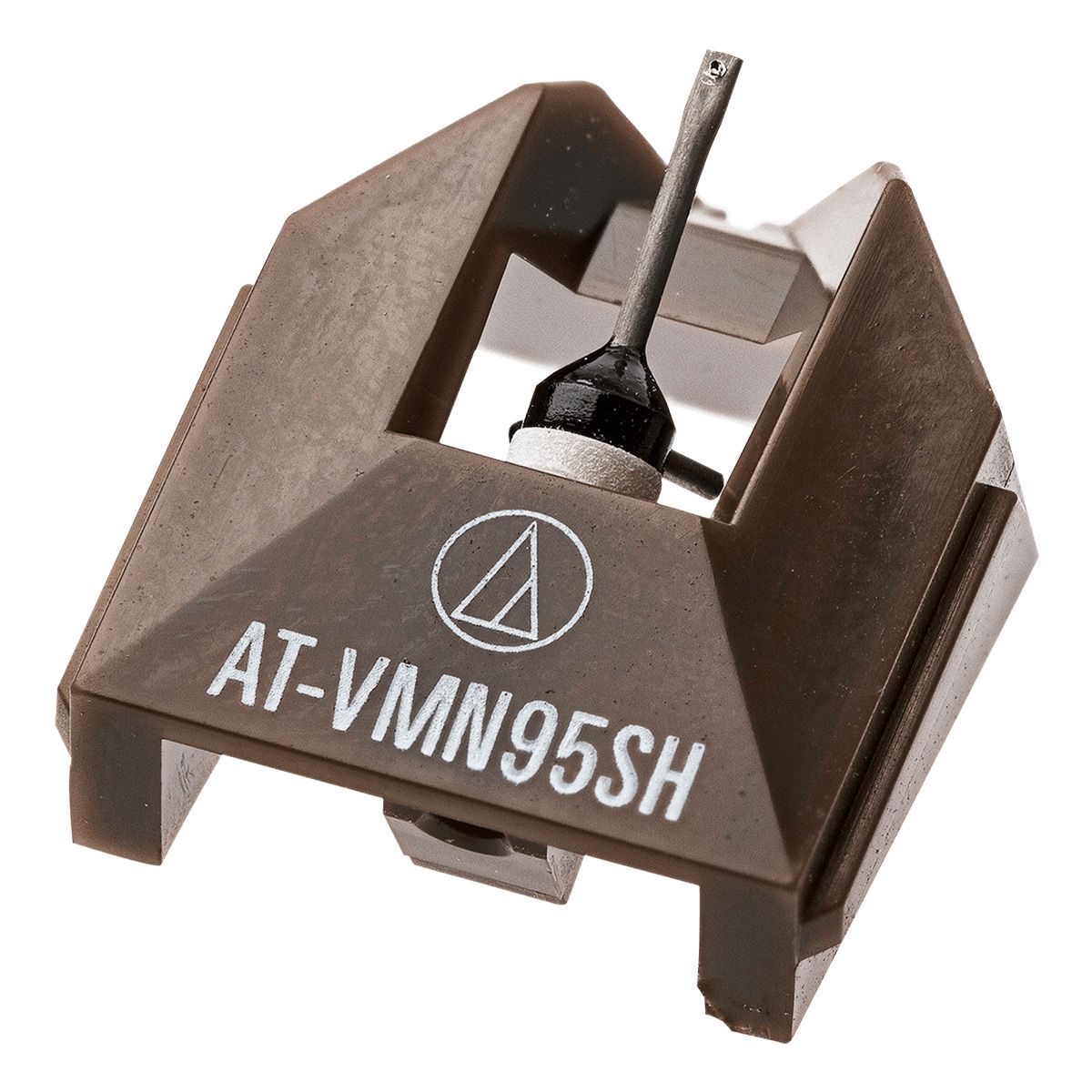

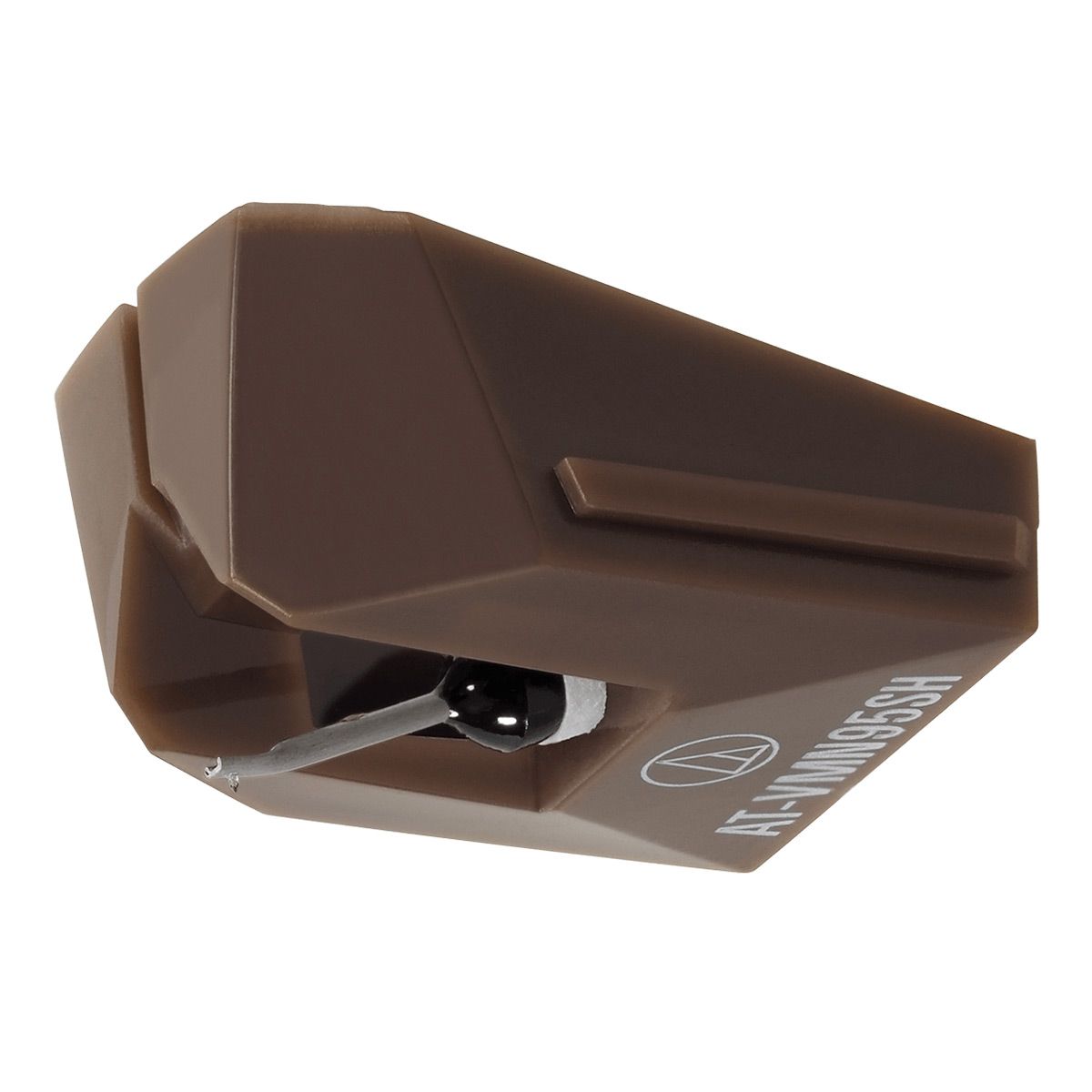

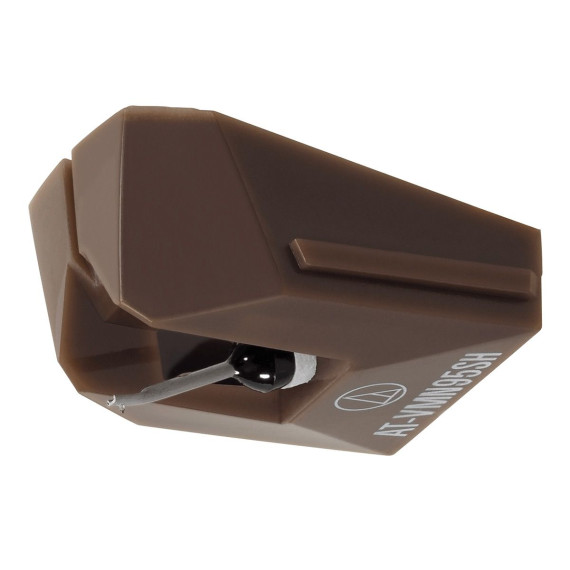

Audio-Technica AT-VMN95SH Replacement Stylus
1001268095
Starget Electronics is a leading online electronics store offering a wide range of gadg...
City: US, New York
Delivery
DHL express - Fast
1 day, Door-to-Door, Courier Delivered
from 26$
Pickup at your own expense
Tomorrow from 09:00 to 20:00, Store location
Free
Payment options
Cash, bank card, credit/installment payments, cashless payment for legal entities
Warranty and returns
Exchange/return of products of proper quality within 14 days
Official manufacturer's warranty: 12 months
Features
general
Item Weight
.1 pounds
Brand Name
Audio-Technica
Battery
No Battery Used
Dimensions (Overall)
3 inches (H) x 3 inches (W) x 1 inches (D)
Electronics Condition
New
Package Quantity
1
Description

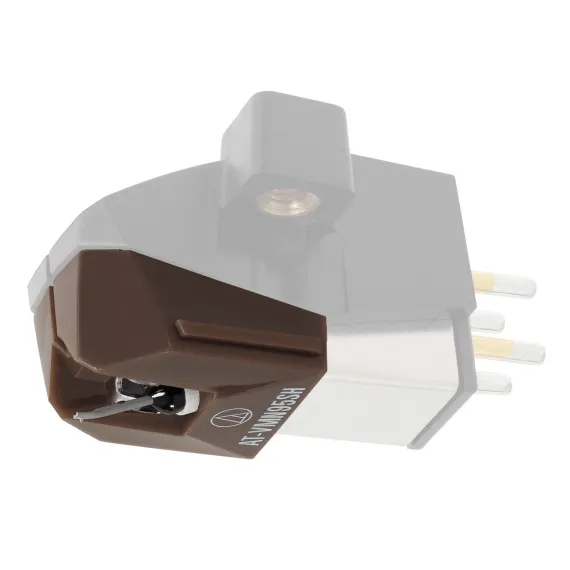

2.7 x 0.26 mil Shibata replacement stylus for AT-VM95SH dual moving magnet cartridge.
What's in the Box
•AT-VMN95SH Replacement Stylus
Specifications
•Frequency Response: 20-25000 Hz
•Channel Separation: 23 dB at 1 kHz
•Vertical Tracking Angle: 23
•Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
•Stylus Construction: Nude Shibata
•Recommended Load Impedance: 47000 ohms
•Coil Impedance: 3.3 k ohms (1 kHz)
•DC Resistance: 485 ohms
•Coil Inductance: 550 mH (1 kHz)
•Output Voltage: 3.5 mV (1 kHz 5 cm/sec.)
•Output Channel Balance: 1.5 dB (1 kHz)
•Stylus Shape: 2.7 x 0.26 mil Shibata
•Cantilever: Aluminum pipe
•Static Compliance: 20 x 10^-6 cm/dyne
•Dynamic Compliance: 10 x 10^-6 cm/dyne (100 Hz)
•Mounting: Half-inch
•Cartridge Weight: 6.1 g
What's in the Box
•AT-VMN95SH Replacement Stylus
Specifications
•Frequency Response: 20-25000 Hz
•Channel Separation: 23 dB at 1 kHz
•Vertical Tracking Angle: 23
•Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
•Stylus Construction: Nude Shibata
•Recommended Load Impedance: 47000 ohms
•Coil Impedance: 3.3 k ohms (1 kHz)
•DC Resistance: 485 ohms
•Coil Inductance: 550 mH (1 kHz)
•Output Voltage: 3.5 mV (1 kHz 5 cm/sec.)
•Output Channel Balance: 1.5 dB (1 kHz)
•Stylus Shape: 2.7 x 0.26 mil Shibata
•Cantilever: Aluminum pipe
•Static Compliance: 20 x 10^-6 cm/dyne
•Dynamic Compliance: 10 x 10^-6 cm/dyne (100 Hz)
•Mounting: Half-inch
•Cartridge Weight: 6.1 g
