Audio-Technica AT-VM95E/H Headshell & MM Cartridge Combo Kit
1001273812
Starget Electronics is a leading online electronics store offering a wide range of gadg...
City: US, New York
Delivery
DHL express - Fast
1 day, Door-to-Door, Courier Delivered
from 26$
Pickup at your own expense
Tomorrow from 09:00 to 20:00, Store location
Free
Payment options
Cash, bank card, credit/installment payments, cashless payment for legal entities
Warranty and returns
Exchange/return of products of proper quality within 14 days
Official manufacturer's warranty: 12 months
Features
general
Item Weight
1.0 pounds
Brand Name
Audio-Technica
Battery
No Battery Used
Dimensions (Overall)
2 inches (H) x 1 inches (W) x 1 inches (D)
Electronics Condition
New
Package Quantity
1
Description

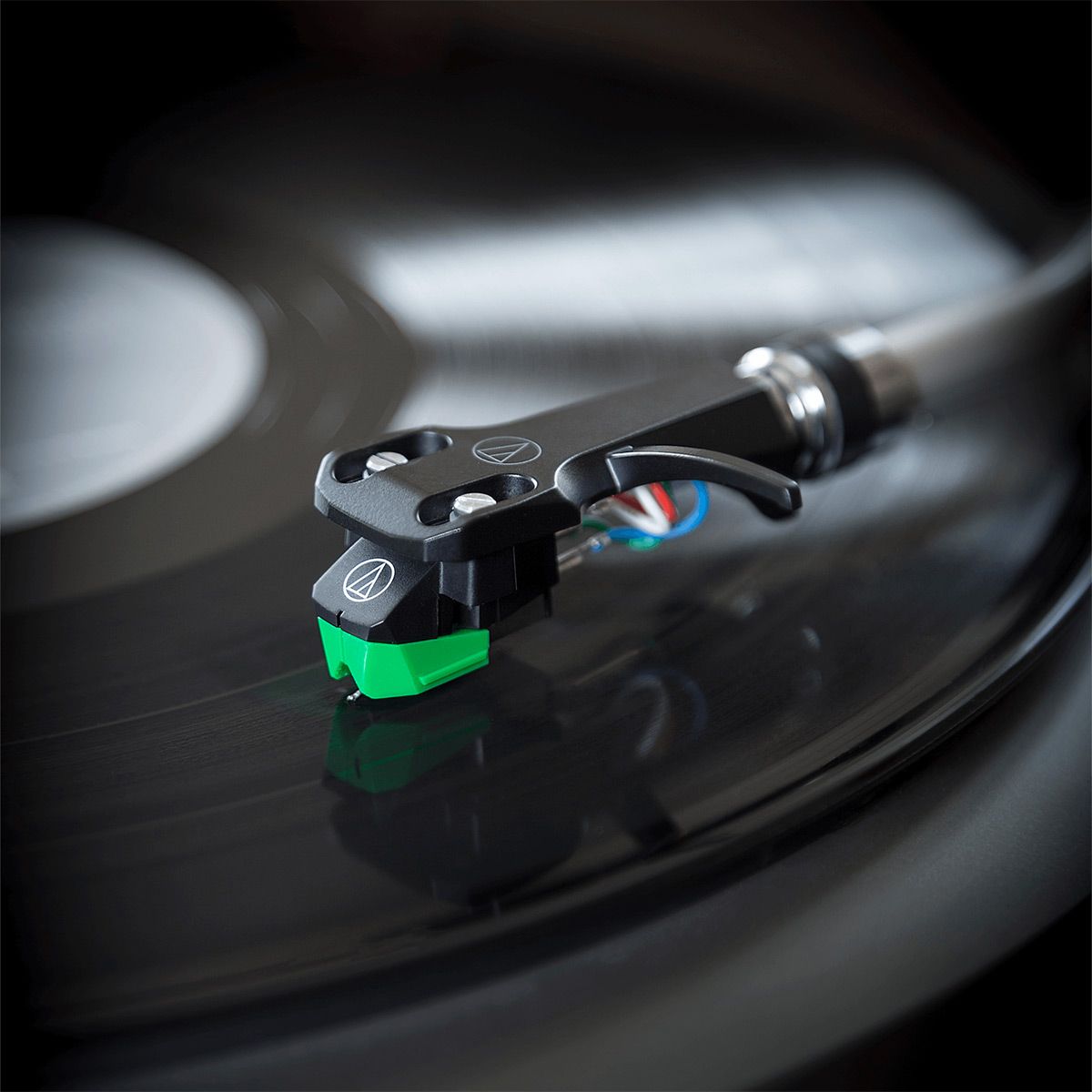

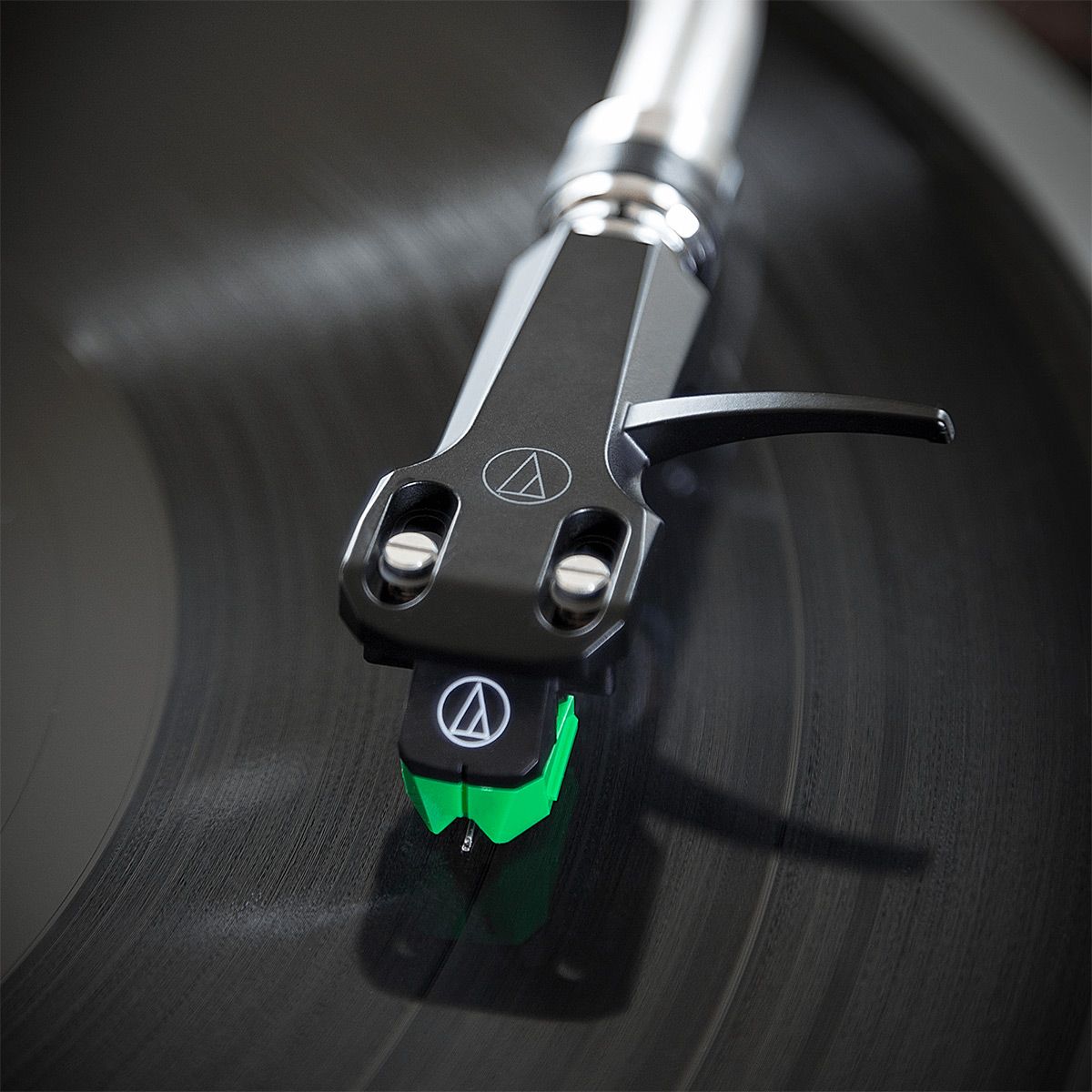

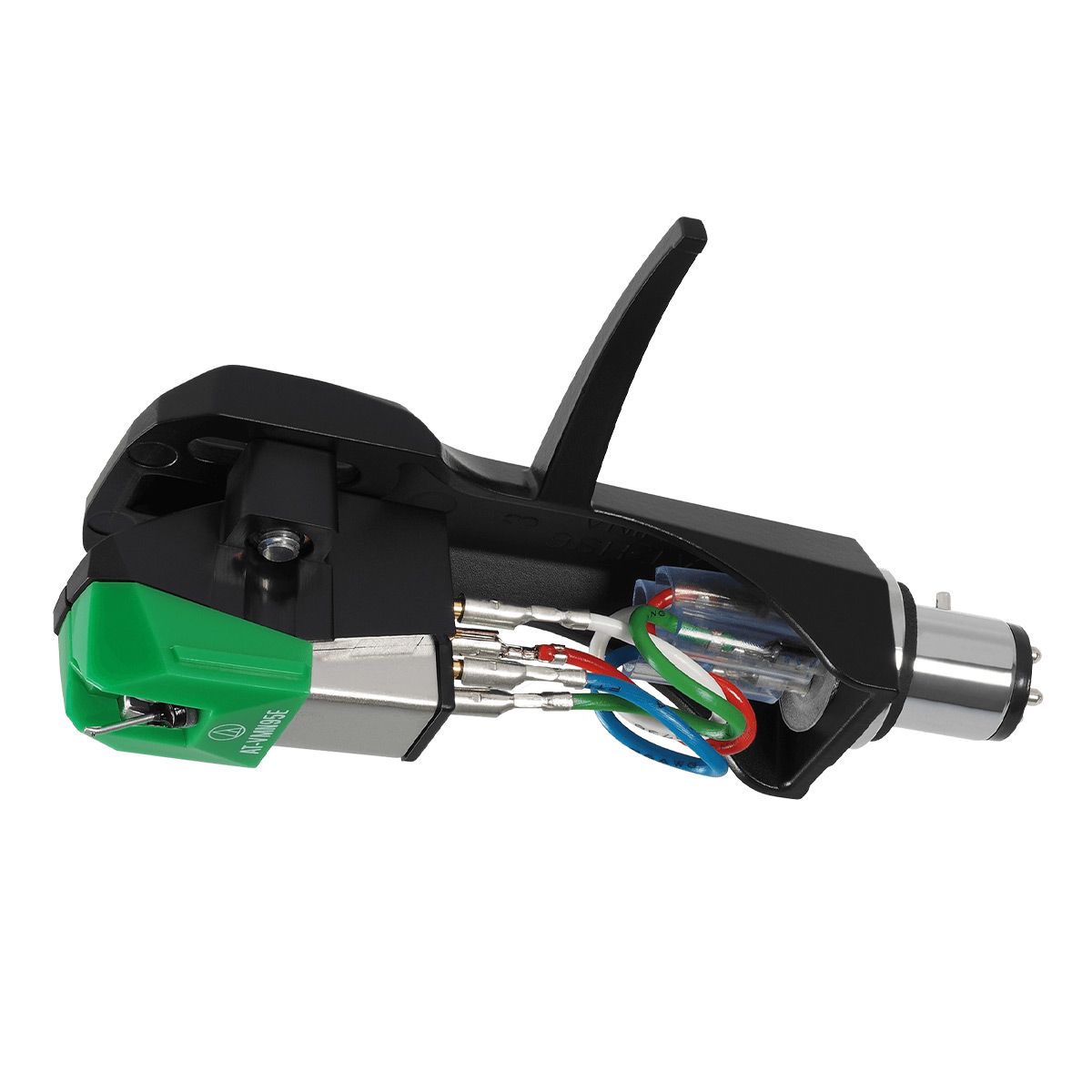

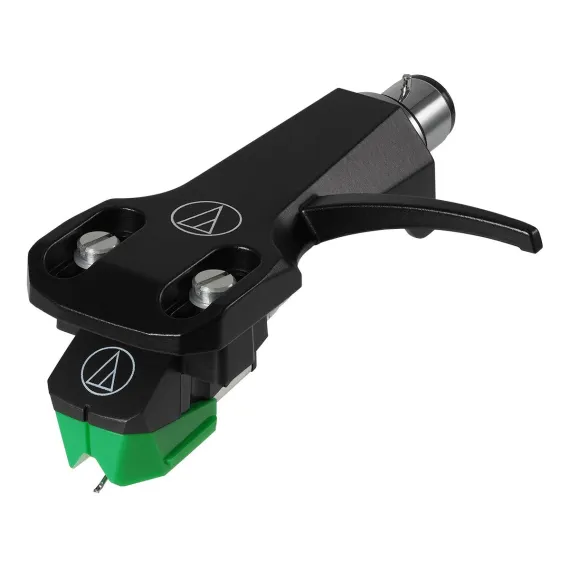

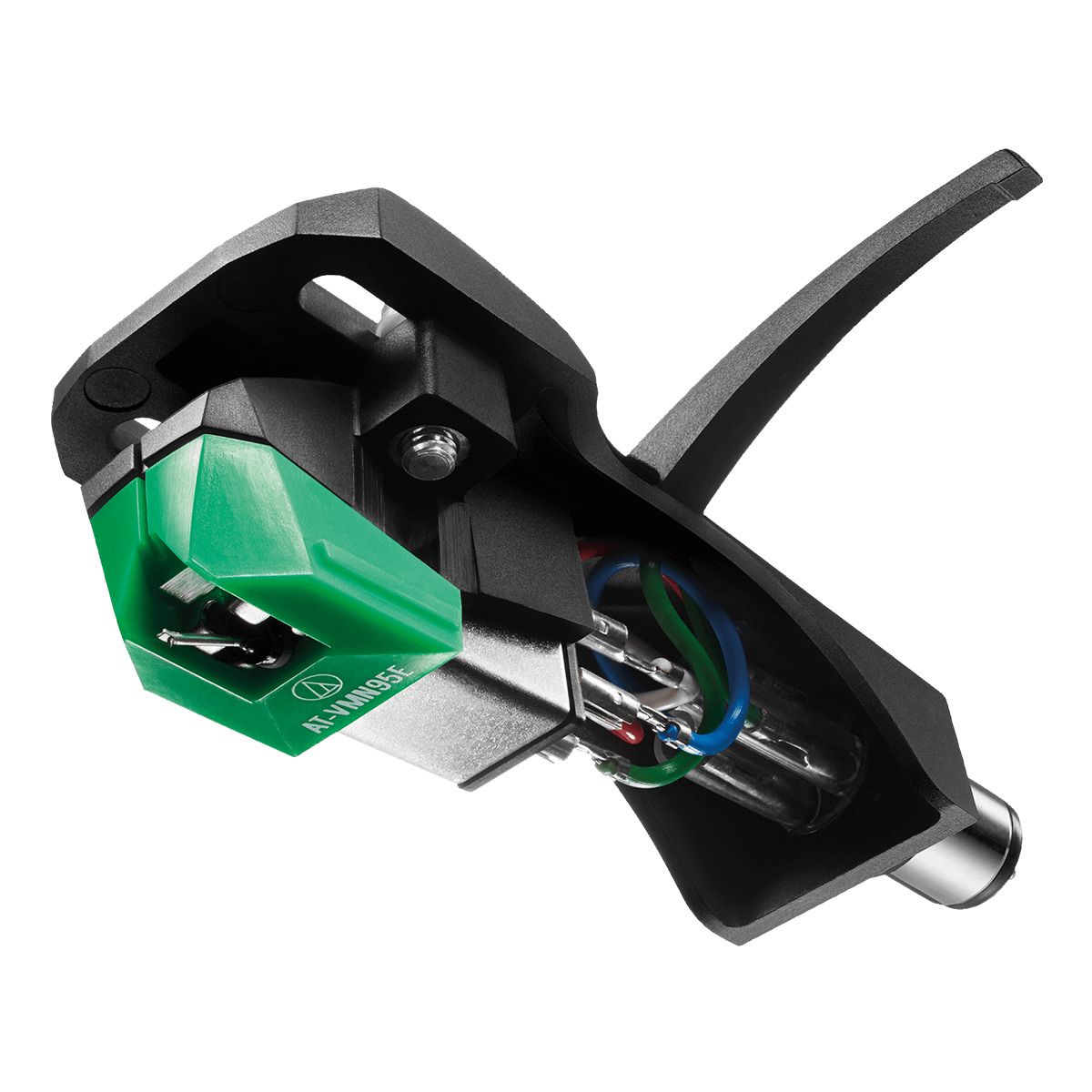

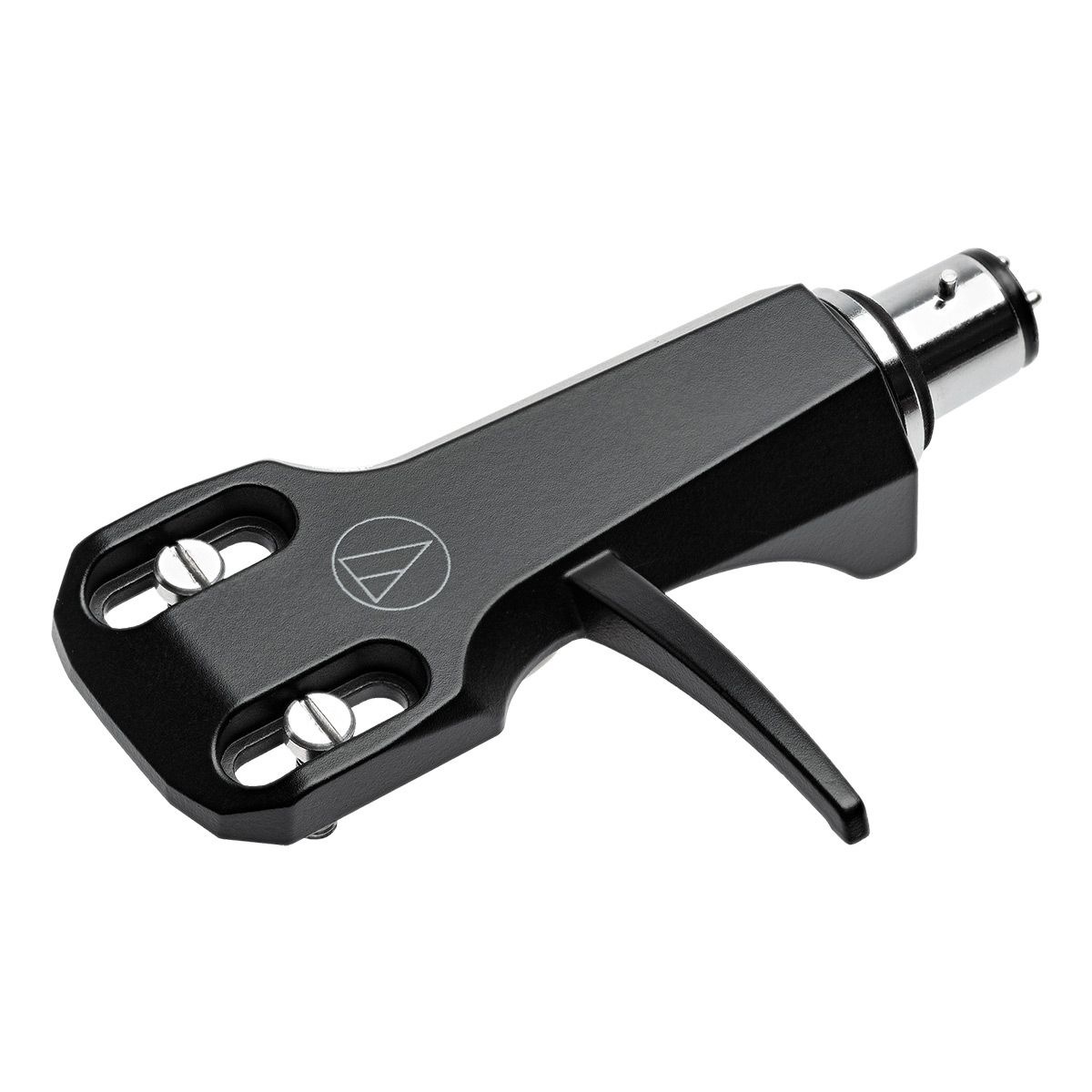

The AT-VM95E/H combo kit includes the AT-VM95E dual moving magnet cartridge premounted on the AT-HS6BK headshell.
Features
•Elliptical Bonded Stylus on an Aluminum Cantilever

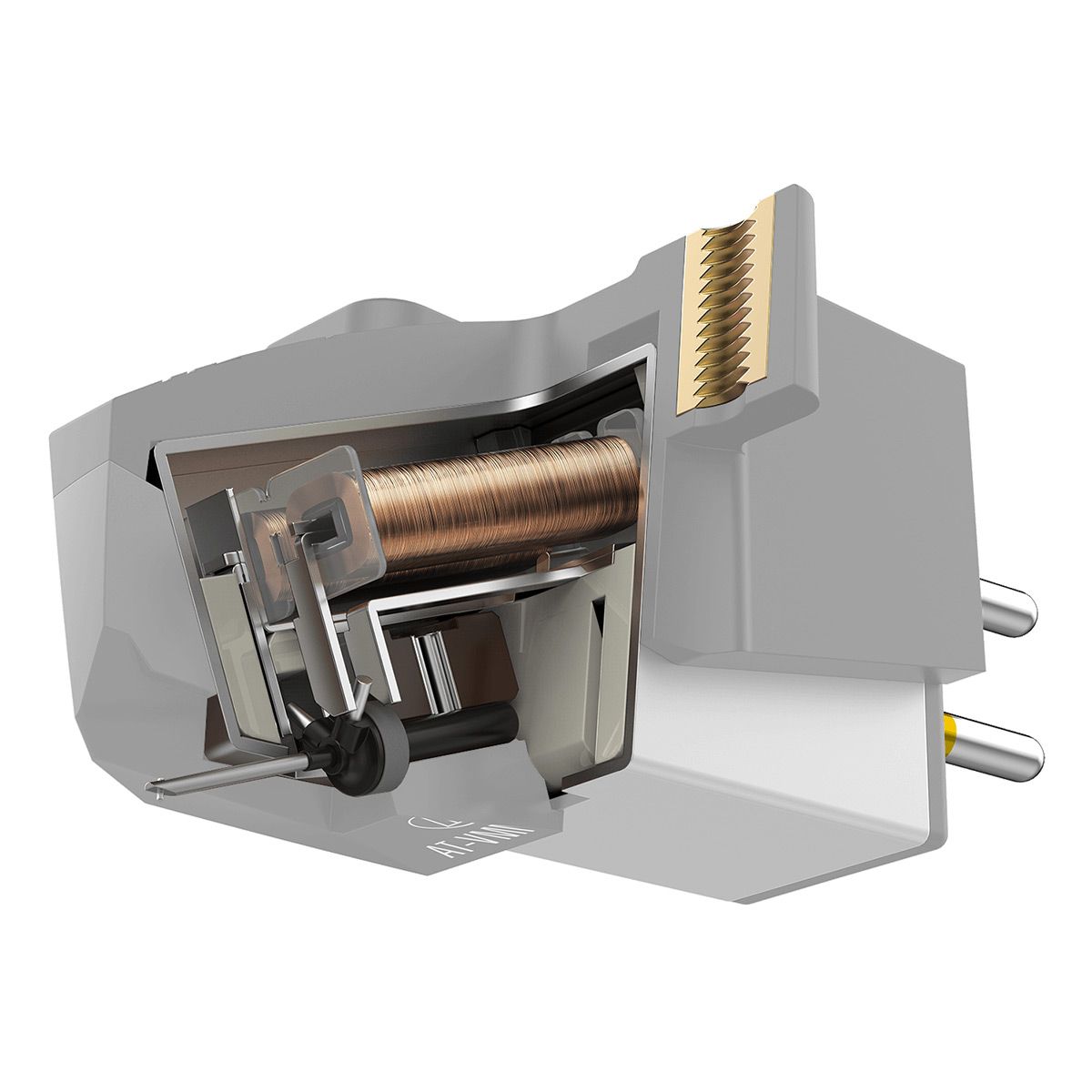

•Dual Moving Magnet Design
•Durable Low-Resonance Hosing
•High Output Level (4.0mV)

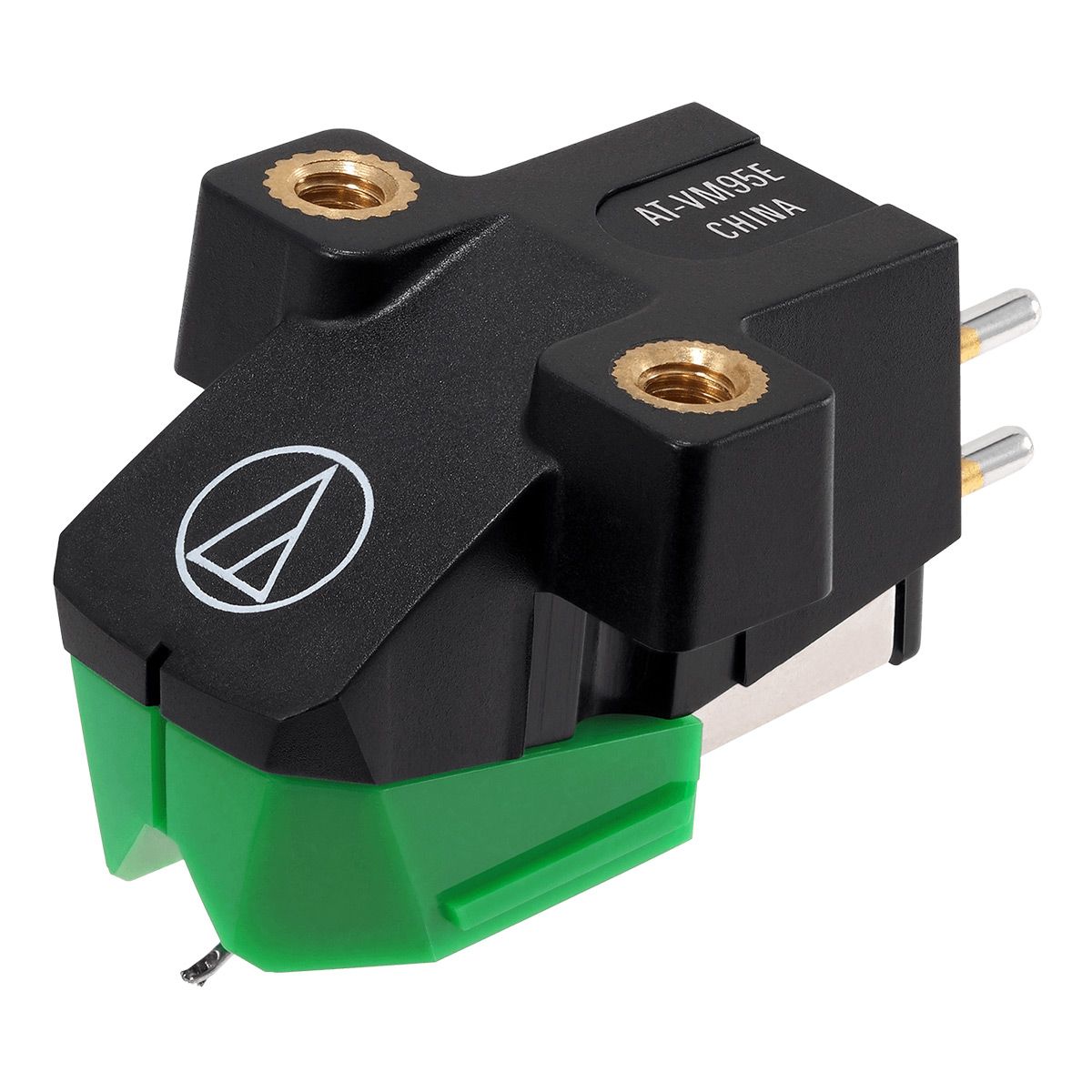

VM95 SeriesThis VM95 Series cartridge with 0.3 x 0.7 mil elliptical stylus fits half-inch mount turntables. The cartridges special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws no nuts required. And since all VM95 Series share the same body the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.
What's in the Box
•AT-VM95E/H Headshell MM Cartridge Combo Kit
•Installation Hardware
Specifications
•Frequency Response: 20-22000 Hz
•Channel Separation: 20 (dB at 1 kHz)
•Vertical Tracking Angle: 23
•Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
•Stylus Construction: Bonded round shank
•Recommended Load Impedance: 47000 ohms
•Coil Impedance: 3.3 k ohms (1 kHz)
•DC Resistance: 485 ohms
•Coil Inductance: 550 mH (1 kHz)
•Output Voltage: 4.0 mV (1 kHz 5 cm/sec.)
•Output Channel Balance: 2.0 dB (1 kHz)
•Stylus Shape: 0.3 x 0.7 mil elliptical
•Cantilever: Aluminum pipe
•Static Compliance: 17 x 10 6 cm / dyne
•Dynamic Compliance: 7 x 10 6 cm / dyne (100 Hz)
•Mounting: Half-inch
•Dimensions (Cartridge Headshell): 0.84" x 0.83" 2.46"
•Model: AT-VM95E/H
•Mounting Feature: Half-inch mount
•Recommended Load Capacitance: 100 to 200 pF
•Replacement Stylus: AT-VMN95E
•Stylus Size: 0.3 x 0.7 mil
•Type: VM Stereo Dual Magnet
•Weight (Cartridge Headshell): 15.5 g (0.55 oz)
•Wire Used for Coil: T.P. Copper
Features
•Elliptical Bonded Stylus on an Aluminum Cantilever
•Dual Moving Magnet Design
•Durable Low-Resonance Hosing
•High Output Level (4.0mV)
VM95 SeriesThis VM95 Series cartridge with 0.3 x 0.7 mil elliptical stylus fits half-inch mount turntables. The cartridges special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws no nuts required. And since all VM95 Series share the same body the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.
What's in the Box
•AT-VM95E/H Headshell MM Cartridge Combo Kit
•Installation Hardware
Specifications
•Frequency Response: 20-22000 Hz
•Channel Separation: 20 (dB at 1 kHz)
•Vertical Tracking Angle: 23
•Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
•Stylus Construction: Bonded round shank
•Recommended Load Impedance: 47000 ohms
•Coil Impedance: 3.3 k ohms (1 kHz)
•DC Resistance: 485 ohms
•Coil Inductance: 550 mH (1 kHz)
•Output Voltage: 4.0 mV (1 kHz 5 cm/sec.)
•Output Channel Balance: 2.0 dB (1 kHz)
•Stylus Shape: 0.3 x 0.7 mil elliptical
•Cantilever: Aluminum pipe
•Static Compliance: 17 x 10 6 cm / dyne
•Dynamic Compliance: 7 x 10 6 cm / dyne (100 Hz)
•Mounting: Half-inch
•Dimensions (Cartridge Headshell): 0.84" x 0.83" 2.46"
•Model: AT-VM95E/H
•Mounting Feature: Half-inch mount
•Recommended Load Capacitance: 100 to 200 pF
•Replacement Stylus: AT-VMN95E
•Stylus Size: 0.3 x 0.7 mil
•Type: VM Stereo Dual Magnet
•Weight (Cartridge Headshell): 15.5 g (0.55 oz)
•Wire Used for Coil: T.P. Copper
