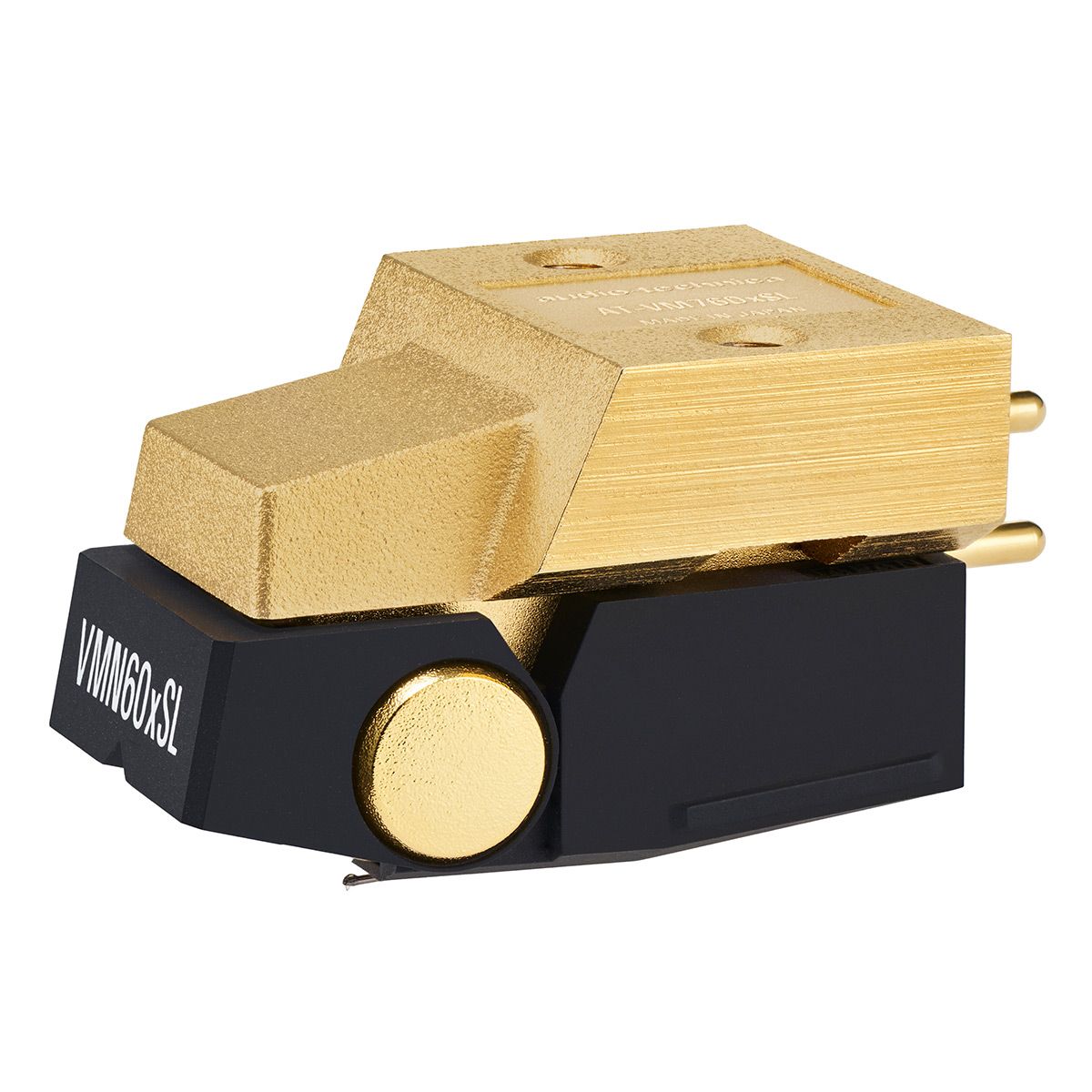

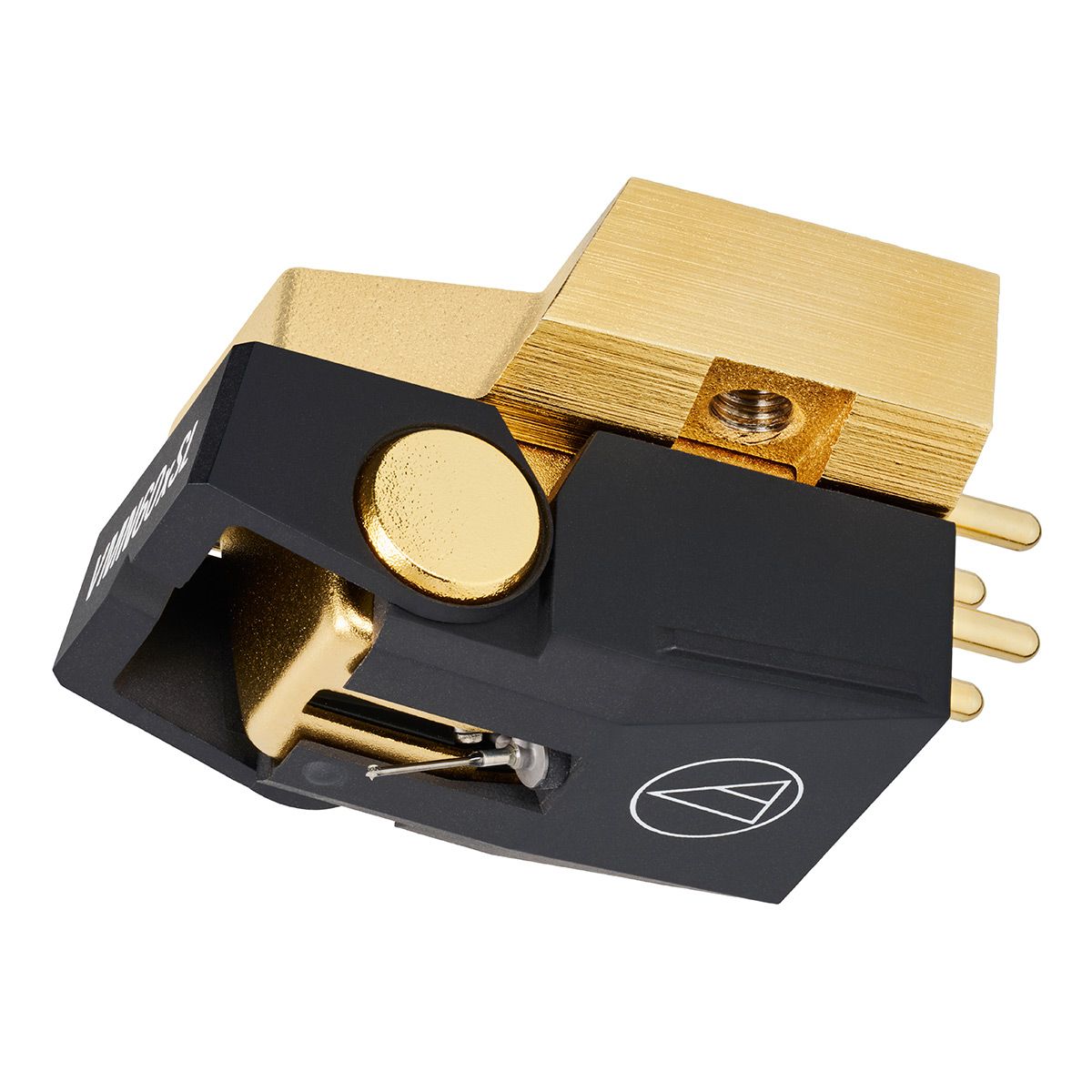

Audio-Technica AT-VM760xSL VMx Special Line Contact MM Phono Cartridge

The Audio-Technica AT-VMx series enhances its premium dual moving magnet cartridges with greater warmth detail and realism. Featuring dual magnets aligned to the stereo groove it delivers excellent channel separation and frequency response. Upgrades like PCUHD copper wire and reduced coil turns improve clarity and transient response. The paratoroidal coil design and center shield plate reduce crosstalk for a cleaner stereo image. Practical features include easy-mount threaded inserts and a V-cut stylus guard for precise placement making the VMx series a refined user-friendly choice for high-quality vinyl playback.

The AT-VM760xSL is equipped with an ultra-lightweight special line contact stylus that allows it to trace the record groove with incredible accuracy and minimal abrasion. This nuanced audio reproduction is further enhanced by the adoption of a solid boron cantilever which transmits signals about 2.5 times faster than the previous models aluminum pipe resulting in more accurate reproduction of dynamic musical passages.

Features
•AT-VMx Dual Moving Magnet Cartridge
•Special Line Contact Stylus
•Solid Boron Cantilever and Metal Body
•Paratoroidal Coils Improve Channel Separation Channel Balance and Transient Response
•Center Shield Plate Reduces Crosstalk
•Durable Low-Resonance Polymer Housing
•Compatible with Any Turntable Headshell That Accepts 1/2 Cartridges

All in the DesignThe Vertical Dual Magnet (MM) design closely mirrors the cutter head used to make the vinyl master. The cutter head uses two transducer coils mounted perpendicular to each other at 45 from horizontal to cut the channel: one in each wall of the 90 record groove. AT-VMx cartridges use the same 90 V-Shape configuration as the cutter head. This way the cartridge achieves accurate tracking excellent channel separation high definition of the stereo image and extreme clarity over the entire audio spectrum.

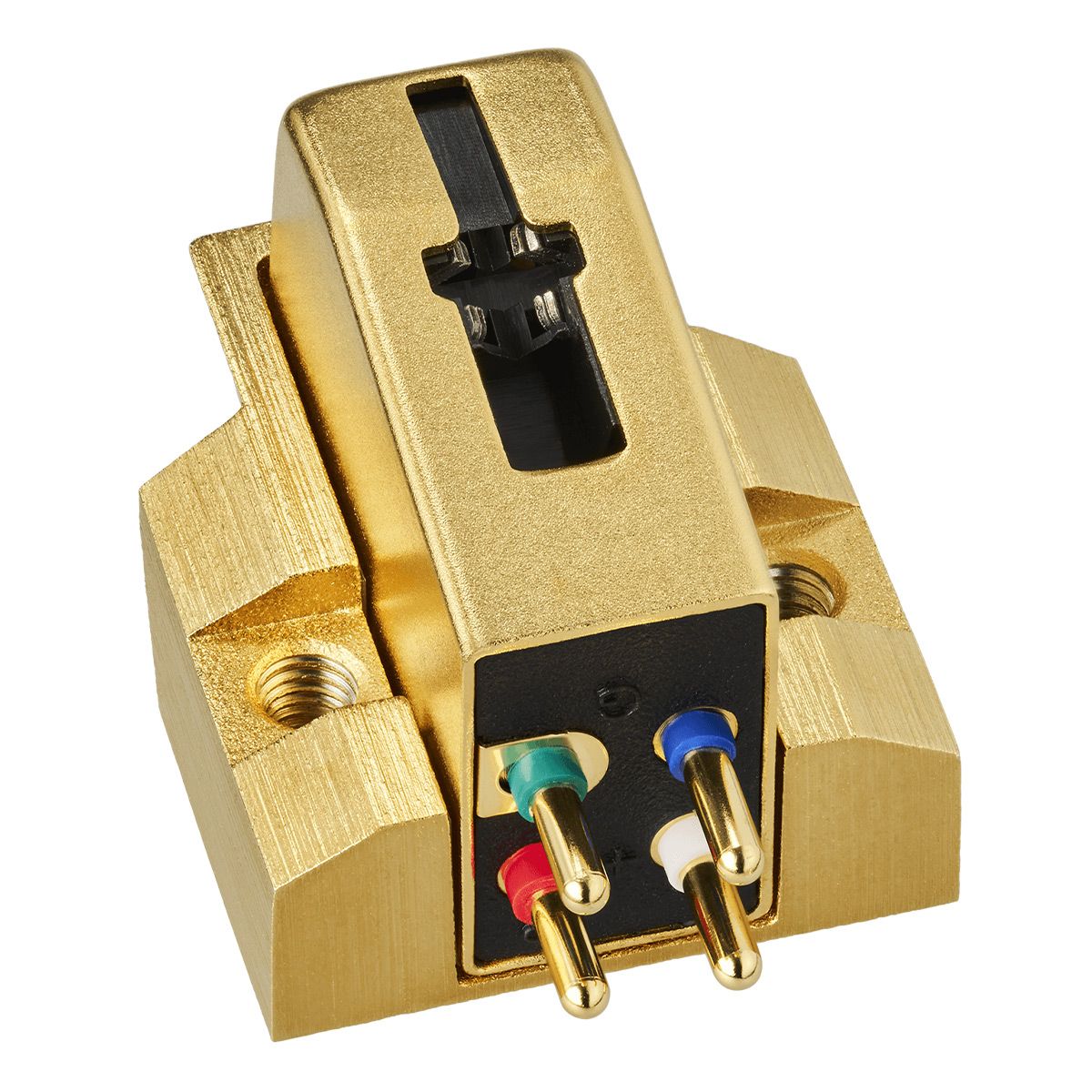

Easy to Install UseEach VMx cartridge body has threaded inserts enabling it to be mounted to a headshell with just two screws no nuts required. And the redesigned stylus protector now includes a V-cut for easy reference of the styluss position when lowering it onto a record.

Interchangeable StyliSince all AT-VMx series cartridges share the same body design and have a removable stylus you can use almost any AT-VMx replacement stylus (excluding mono models) with any VMx cartridge for easy experimentation with sound characteristics.

Highly Efficient GeneratorThe paratoroidal coil construction of the cartridges generator two PCUHD coils per channel one stacked behind the other greatly improves electromagnetic performance while a slight reduction in coil turns* enhances transient response for clean lifelike sound.

*Compared to VM series cartridges.

Solid Boron Cantilever and Metal BodyThe three premium VMx models (AT-VM760x AT-VM750x AT-VM745x) feature a solid boron cantilever. Naturally lightweight and rigid boron transmits signals from the record groove faster than an aluminum cantilever. The result is more accurate sound reproduction thats particularly noticeable on dynamic musical passages. The die-cast aluminum body reduces vibrations and resonance.

What's in the Box
•AT-VM760xSL VMx Special Line Contact MM Phono Cartridge

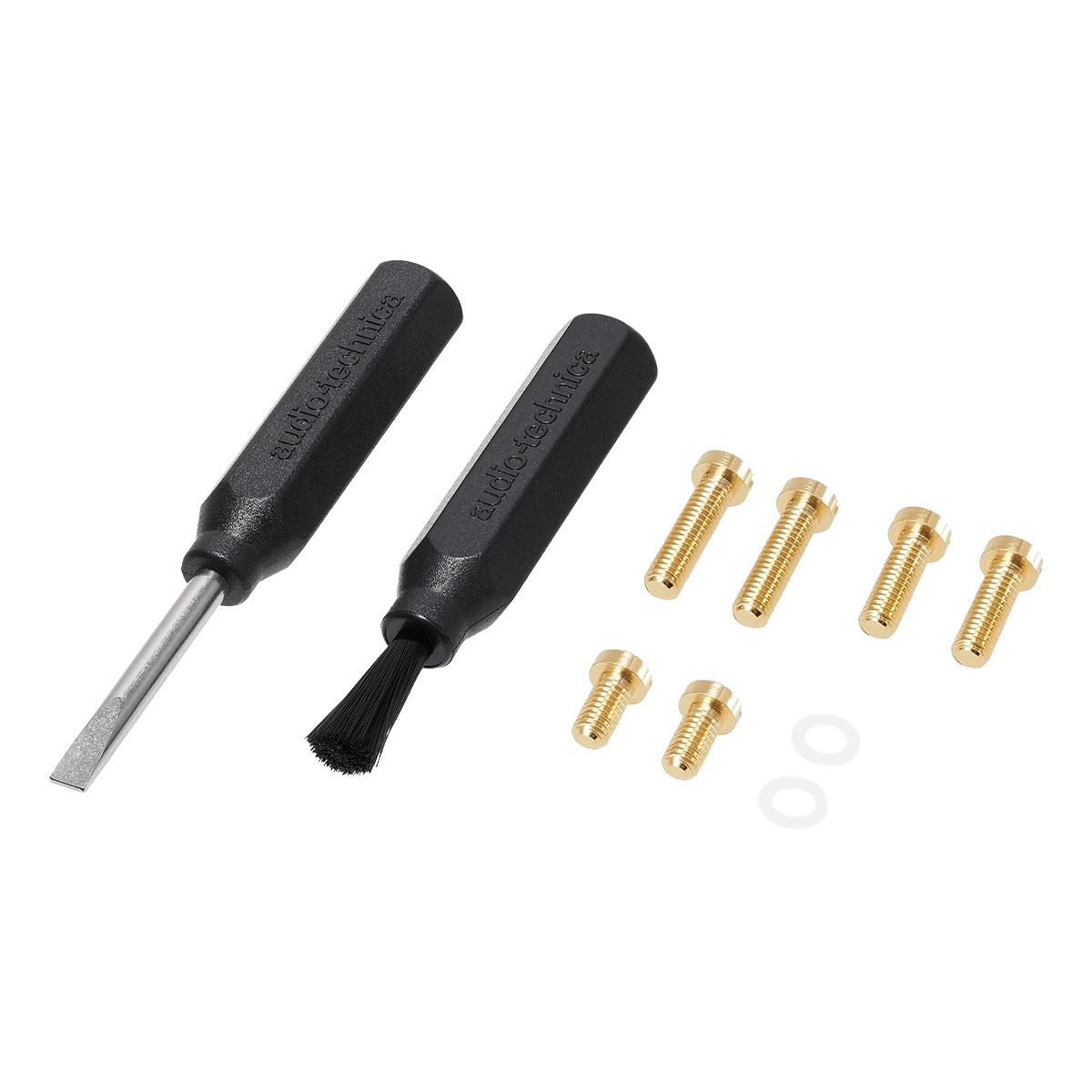

•Cartridge Installation Screws
•Washers
•Manual

Specifications
•Type: VM
•Frequency response: 20 to 30000 Hz
•Output voltage: 3.7 mV (1 kHz 5 cm/sec.)
•Channel separatio
