Audio-Technica AT-VM610xMONO VMx Mono Phono Cartridge
1003619477
Starget Electronics is a leading online electronics store offering a wide range of gadg...
City: US, New York
Delivery
DHL express - Fast
1 day, Door-to-Door, Courier Delivered
from 26$
Pickup at your own expense
Tomorrow from 09:00 to 20:00, Store location
Free
Payment options
Cash, bank card, credit/installment payments, cashless payment for legal entities
Warranty and returns
Exchange/return of products of proper quality within 14 days
Official manufacturer's warranty: 12 months
Features
general
Item Weight
.01 pounds
Brand Name
Audio-Technica
Battery
No Battery Used
Dimensions (Overall)
.72 inches (H) x .69 inches (W) x 1.1 inches (D)
Electronics Condition
New
Package Quantity
1
Description
The Audio-Technica AT-VMx series enhances its premium dual moving magnet cartridges with greater warmth detail and realism. Featuring dual magnets aligned to the stereo groove it delivers excellent channel separation and frequency response. Upgrades like PCUHD copper wire and reduced coil turns improve clarity and transient response. The paratoroidal coil design and center shield plate reduce crosstalk for a cleaner stereo image. Practical features include easy-mount threaded inserts and a V-cut stylus guard for precise placement making the VMx series a refined user-friendly choice for high-quality vinyl playback.
As its name indicates the AT-VM610xMONO is designed for playing mono records. The dual magnets in this cartridge are internally connected to reduce record noise and obtain a highly focused center sound image that stereo cartridges cant provide.
Features
•AT-VMx Dual Moving Magnet Cartridge
•Conical Bonded Stylus (0.6 mil)
•Paratoroidal Coils Improve Transient Response
•Center Shield Plate Reduces Crosstalk
•Durable Low-Resonance Polymer Housing
•Aluminum Cantilever
•Compatible with Any Turntable Headshell That Accepts 1/2 Cartridges
PCUHD (Pure Copper Ultra High Drawability)Like all VMx cartridges the AT-VM610xMONO features PCUHD (Pure Copper Ultra High Drawability) resulting in richer more nuanced audio reproduction. The number of coil turns has also been slightly reduced to improve transient response allowing the cartridge to react more quickly to signal changes for stunningly clean music with lifelike immediacy. The 0.6 mil conical bonded stylus of the AT-VM610xMONO tracks the center of the record groove for reliable performance and excellent fidelity.
Easy to Install UseEach VMx cartridge body has threaded inserts enabling it to be mounted to a headshell with just two screws no nuts required. And the redesigned stylus protector now includes a V-cut for easy reference of the styluss position when lowering it onto a record.
What's in the Box
•AT-VM610xMONO VMx Mono Phono Cartridge

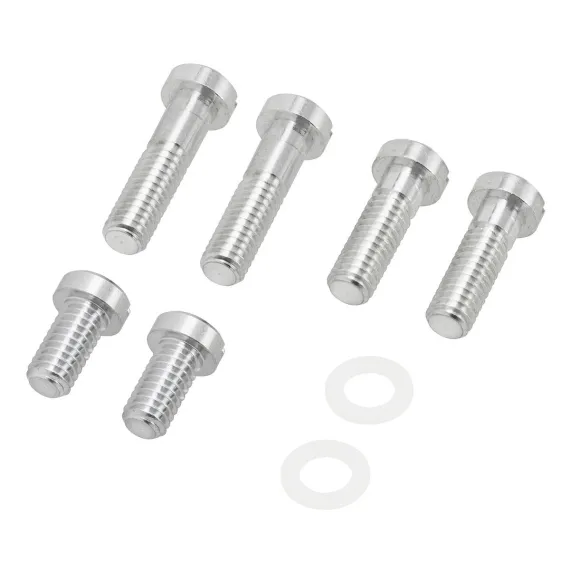

•Cartridge Installation Screws
•Washers
•Manual
Specifications
•Type: VM
•Frequency response: 20 to 20000 Hz
•Output voltage: 5.0 mV (1 kHz 5 cm/sec.)
•Horizontal/vertical output ratio: 20 dB (1 kHz)
•Tracking force: 1.8 to 2.2 g (2.0 g standard)
•Coil impedance: 1.6 k ohms (1 kHz)
•DC resistance: 375 ohms
•Recommended load impedance: 47 k ohms
•Recommended load capacitance: 150 to 250 pF
•Coil inductance: 240 mH (1 kHz)
•Static compliance: 23 10?6 cm/dyne
•Dynamic compliance: 7 10?6 cm/dyne (100 Hz)
•Stylus: Conical bonded
•Stylus curvature radius: 0.6 mil
•Cantilever: Aluminum pipe
•Vertical tracking angle: 20
•Dimensions: 28.0 mm (1.1) 18.3 mm (0.72) 17.6 mm (0.69) (H W D)
•Threaded hole: M2.6 2
•Weight: 7.2 g (0.25 oz)
•Replacement stylus (sold separately): AT-VMN10xCB
As its name indicates the AT-VM610xMONO is designed for playing mono records. The dual magnets in this cartridge are internally connected to reduce record noise and obtain a highly focused center sound image that stereo cartridges cant provide.
Features
•AT-VMx Dual Moving Magnet Cartridge
•Conical Bonded Stylus (0.6 mil)
•Paratoroidal Coils Improve Transient Response
•Center Shield Plate Reduces Crosstalk
•Durable Low-Resonance Polymer Housing
•Aluminum Cantilever
•Compatible with Any Turntable Headshell That Accepts 1/2 Cartridges
PCUHD (Pure Copper Ultra High Drawability)Like all VMx cartridges the AT-VM610xMONO features PCUHD (Pure Copper Ultra High Drawability) resulting in richer more nuanced audio reproduction. The number of coil turns has also been slightly reduced to improve transient response allowing the cartridge to react more quickly to signal changes for stunningly clean music with lifelike immediacy. The 0.6 mil conical bonded stylus of the AT-VM610xMONO tracks the center of the record groove for reliable performance and excellent fidelity.
Easy to Install UseEach VMx cartridge body has threaded inserts enabling it to be mounted to a headshell with just two screws no nuts required. And the redesigned stylus protector now includes a V-cut for easy reference of the styluss position when lowering it onto a record.
What's in the Box
•AT-VM610xMONO VMx Mono Phono Cartridge
•Cartridge Installation Screws
•Washers
•Manual
Specifications
•Type: VM
•Frequency response: 20 to 20000 Hz
•Output voltage: 5.0 mV (1 kHz 5 cm/sec.)
•Horizontal/vertical output ratio: 20 dB (1 kHz)
•Tracking force: 1.8 to 2.2 g (2.0 g standard)
•Coil impedance: 1.6 k ohms (1 kHz)
•DC resistance: 375 ohms
•Recommended load impedance: 47 k ohms
•Recommended load capacitance: 150 to 250 pF
•Coil inductance: 240 mH (1 kHz)
•Static compliance: 23 10?6 cm/dyne
•Dynamic compliance: 7 10?6 cm/dyne (100 Hz)
•Stylus: Conical bonded
•Stylus curvature radius: 0.6 mil
•Cantilever: Aluminum pipe
•Vertical tracking angle: 20
•Dimensions: 28.0 mm (1.1) 18.3 mm (0.72) 17.6 mm (0.69) (H W D)
•Threaded hole: M2.6 2
•Weight: 7.2 g (0.25 oz)
•Replacement stylus (sold separately): AT-VMN10xCB
