Audio-Technica AT-OC9XSH Dual Moving Coil Cartridge
1001273806
Starget Electronics is a leading online electronics store offering a wide range of gadg...
City: US, New York
Delivery
DHL express - Fast
1 day, Door-to-Door, Courier Delivered
from 26$
Pickup at your own expense
Tomorrow from 09:00 to 20:00, Store location
Free
Payment options
Cash, bank card, credit/installment payments, cashless payment for legal entities
Warranty and returns
Exchange/return of products of proper quality within 14 days
Official manufacturer's warranty: 12 months
Features
general
Item Weight
.37 pounds
Brand Name
Audio-Technica
Battery
No Battery Used
Dimensions (Overall)
3 inches (H) x 3 inches (W) x 1 inches (D)
Electronics Condition
New
Package Quantity
1
Description

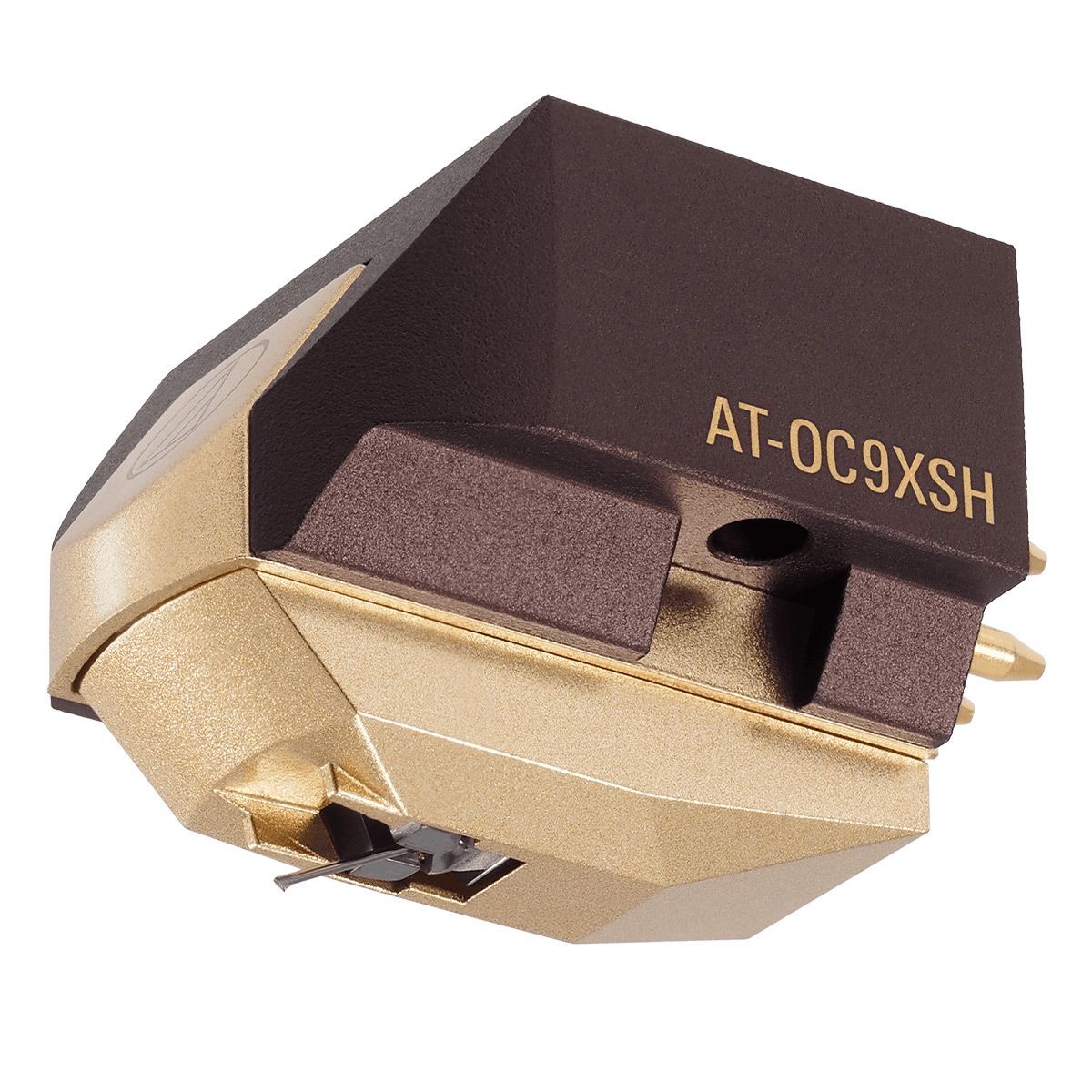

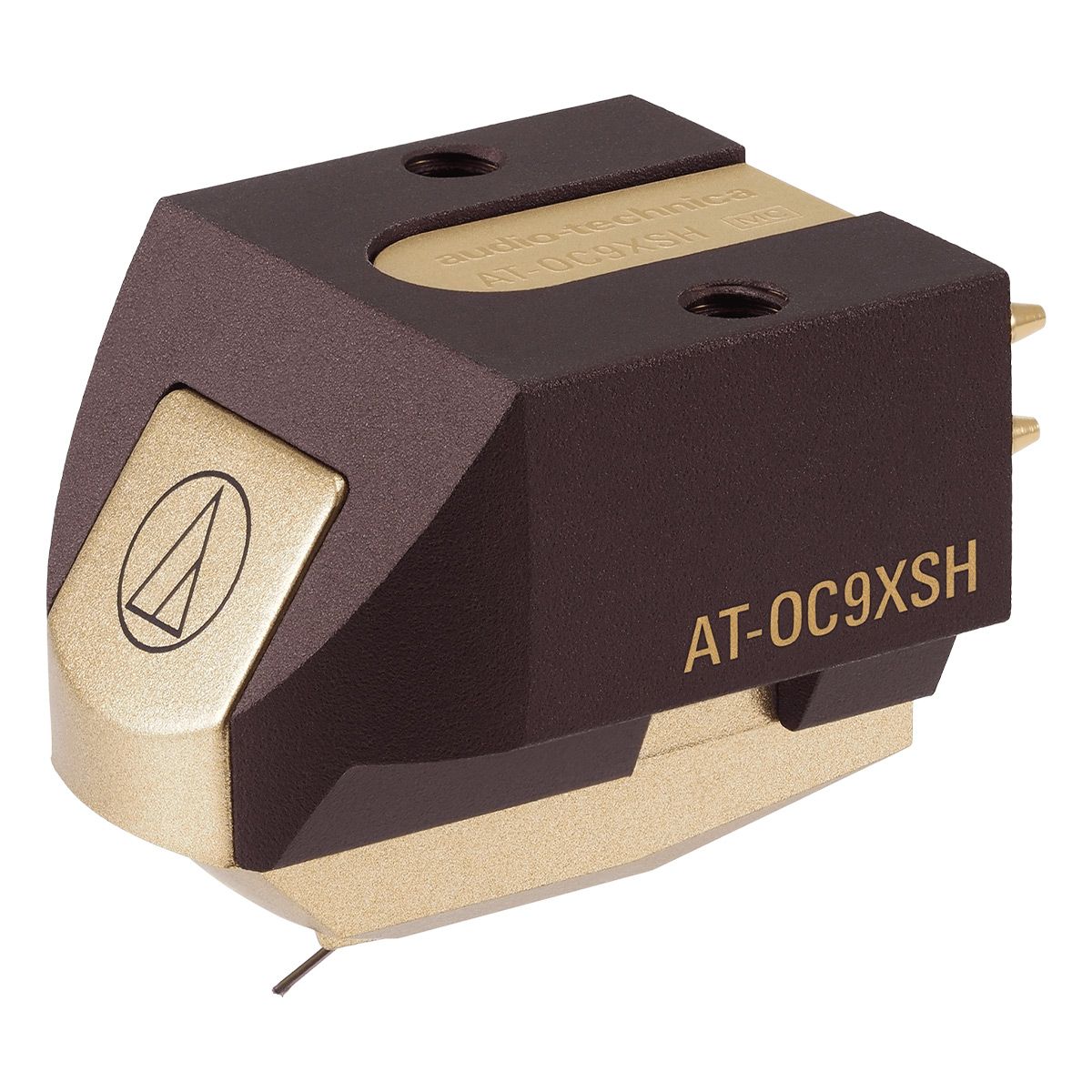

The AT-OC9XSH Dual Moving Coil cartridge with Shibata stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus thereby minimizing distortion.
Features
•Dual Moving Coil Design
•Nude Shibata Stylus Boron Cantilever
•Pre-Threaded Cartridge Body
•Aluminum Body Minimizes Unwanted Vibration
DesignAudio quality is further enhanced by a rigid aluminum body that reduces resonance a neodymium magnet and premium permendur yoke that increase the magnetic energy and the nude Shibata stylus on a boron cantilever that tracks the record groove with incredible accuracy delivering rich full-range audio and high transient response. The cartridge body has been pre-threaded enabling it to be mounted to a headshell or integral tonearm with just two screws no nuts required.

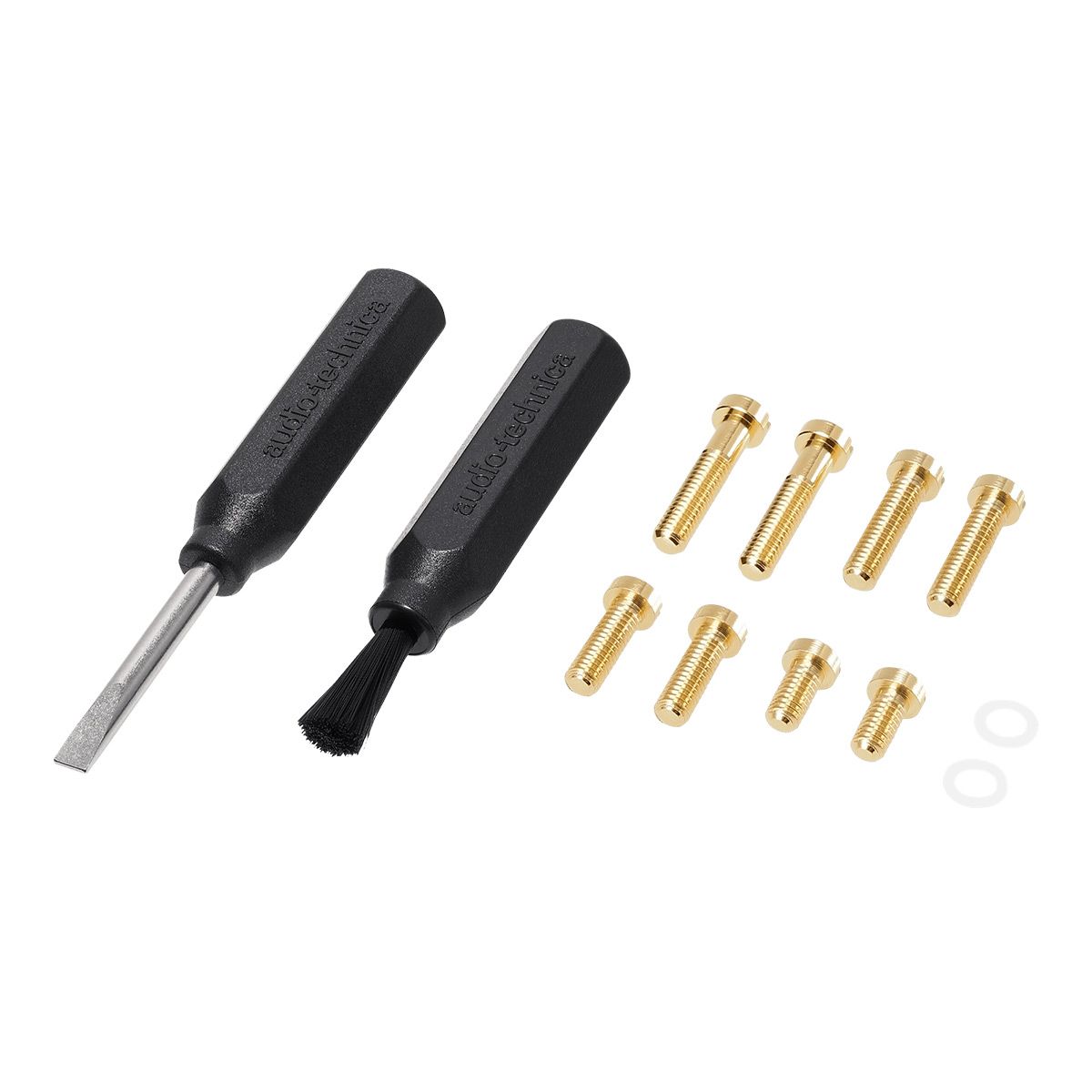

What's in the Box
•AT-OC9XSH Dual Moving Coil Cartridge
•Non-Magnetic Screwdriver
•Installation Hardware
Specifications
•Frequency Response: 20-47000 Hz
•Channel Separation: 27 dB (1 kHz)
•Vertical Tracking Angle: 20
•Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
•Stylus Construction: Nude square shank
•Recommended Load Impedance : Min. 100 ohms (when head amplifier is connected)
•Coil Impedance: 12 ohms (1 kHz)
•DC Resistance: 12 ohms
•Coil Inductance: 25 mH (1 kHz)
•Output Voltage: 0.4 mV (at 1 kHz 5 cm/sec)
•Output Channel Balance: 1.0 dB (1 kHz)
•Stylus Shape: Shibata
•Cantilever: 0.28 mm diameter nude boron
•Static Compliance: 20 x 10-6 cm/dyne
•Dynamic Compliance: 16 x 10-6 cm/dyne (100 Hz)
•Mounting: Half-inch
•Cartridge Weight: 7.6 g
•Dimensions (W x H x D): 0.66" x 0.68 1.01"
•Body Material: Aluminum
•Model: AT-OC9XSH
•Mounting Feature: Half-inch mount
•Stylus Curvature Radius: 2.7 x 0.26 mil
•Stylus Size: Nude square shank
•Terminal Pins: Brass
Features
•Dual Moving Coil Design
•Nude Shibata Stylus Boron Cantilever
•Pre-Threaded Cartridge Body
•Aluminum Body Minimizes Unwanted Vibration
DesignAudio quality is further enhanced by a rigid aluminum body that reduces resonance a neodymium magnet and premium permendur yoke that increase the magnetic energy and the nude Shibata stylus on a boron cantilever that tracks the record groove with incredible accuracy delivering rich full-range audio and high transient response. The cartridge body has been pre-threaded enabling it to be mounted to a headshell or integral tonearm with just two screws no nuts required.
What's in the Box
•AT-OC9XSH Dual Moving Coil Cartridge
•Non-Magnetic Screwdriver
•Installation Hardware
Specifications
•Frequency Response: 20-47000 Hz
•Channel Separation: 27 dB (1 kHz)
•Vertical Tracking Angle: 20
•Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
•Stylus Construction: Nude square shank
•Recommended Load Impedance : Min. 100 ohms (when head amplifier is connected)
•Coil Impedance: 12 ohms (1 kHz)
•DC Resistance: 12 ohms
•Coil Inductance: 25 mH (1 kHz)
•Output Voltage: 0.4 mV (at 1 kHz 5 cm/sec)
•Output Channel Balance: 1.0 dB (1 kHz)
•Stylus Shape: Shibata
•Cantilever: 0.28 mm diameter nude boron
•Static Compliance: 20 x 10-6 cm/dyne
•Dynamic Compliance: 16 x 10-6 cm/dyne (100 Hz)
•Mounting: Half-inch
•Cartridge Weight: 7.6 g
•Dimensions (W x H x D): 0.66" x 0.68 1.01"
•Body Material: Aluminum
•Model: AT-OC9XSH
•Mounting Feature: Half-inch mount
•Stylus Curvature Radius: 2.7 x 0.26 mil
•Stylus Size: Nude square shank
•Terminal Pins: Brass
