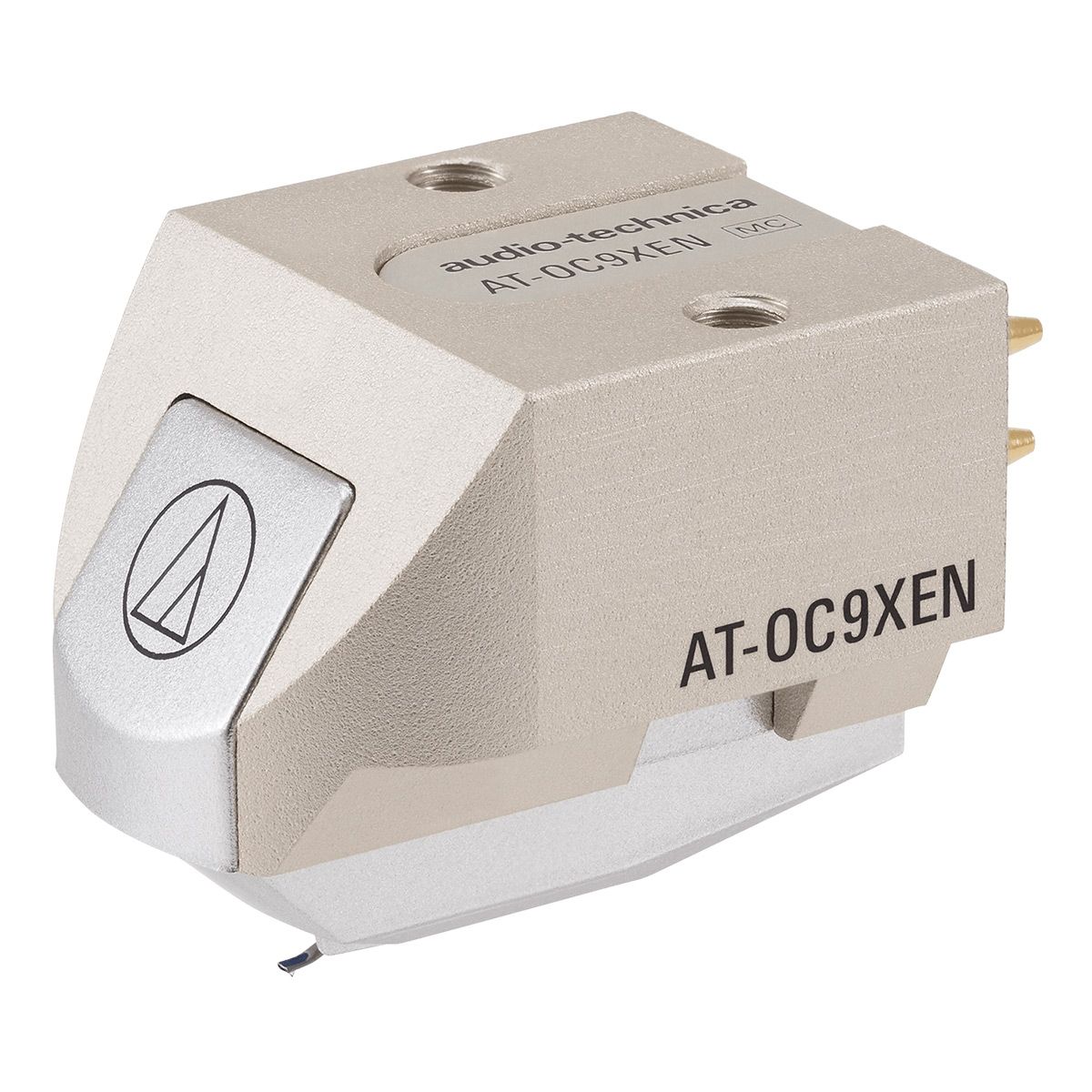

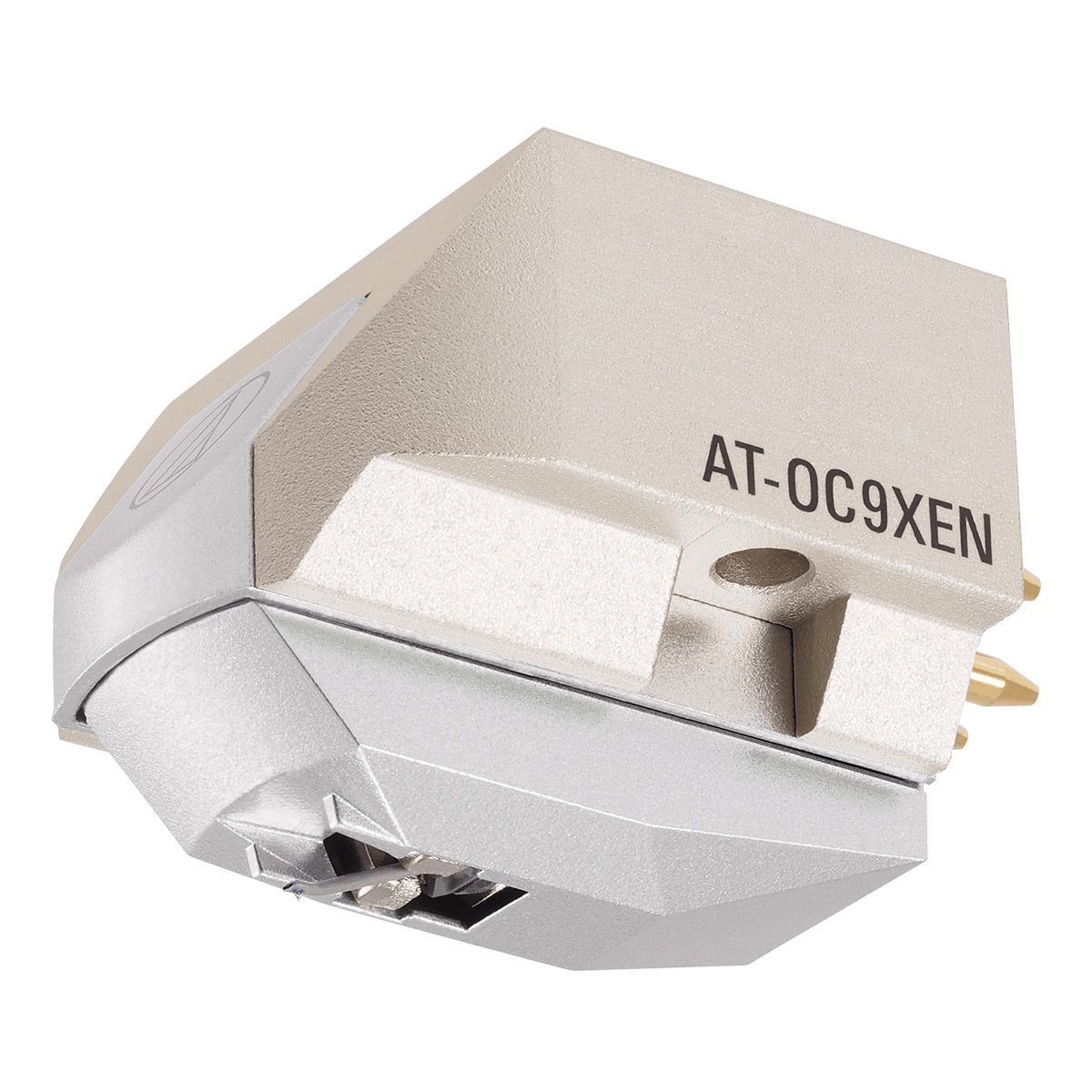

Audio-Technica AT-OC9XEN Dual Moving Coil Cartridge
1001268101
Starget Electronics is a leading online electronics store offering a wide range of gadg...
City: US, New York
Delivery
DHL express - Fast
1 day, Door-to-Door, Courier Delivered
from 26$
Pickup at your own expense
Tomorrow from 09:00 to 20:00, Store location
Free
Payment options
Cash, bank card, credit/installment payments, cashless payment for legal entities
Warranty and returns
Exchange/return of products of proper quality within 14 days
Official manufacturer's warranty: 12 months
Features
general
Item Weight
.37 pounds
Brand Name
Audio-Technica
Battery
No Battery Used
Dimensions (Overall)
3 inches (H) x 2 inches (W) x 1 inches (D)
Electronics Condition
New
Package Quantity
1
Description
The AT-OC9XEN Dual Moving Coil cartridge with nude elliptical stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus thereby minimizing distortion.
Features
•Dual Moving Coil Design
•Low Mass Nude Elliptical Stylus Aluminum Cantilever
•Pre-Threaded Cartridge Body
•Aluminum Body Minimizes Unwanted Vibration
DesignAudio quality is further enhanced by a rigid aluminum body that reduces resonance a neodymium magnet and pure iron yoke that increase the magnetic energy and the low-mass nude elliptical stylus on an aluminum cantilever that accurately tracks the record groove. The cartridge body has been pre-threaded enabling it to be mounted to a headshell or integral tonearm with just two screws no nuts required.

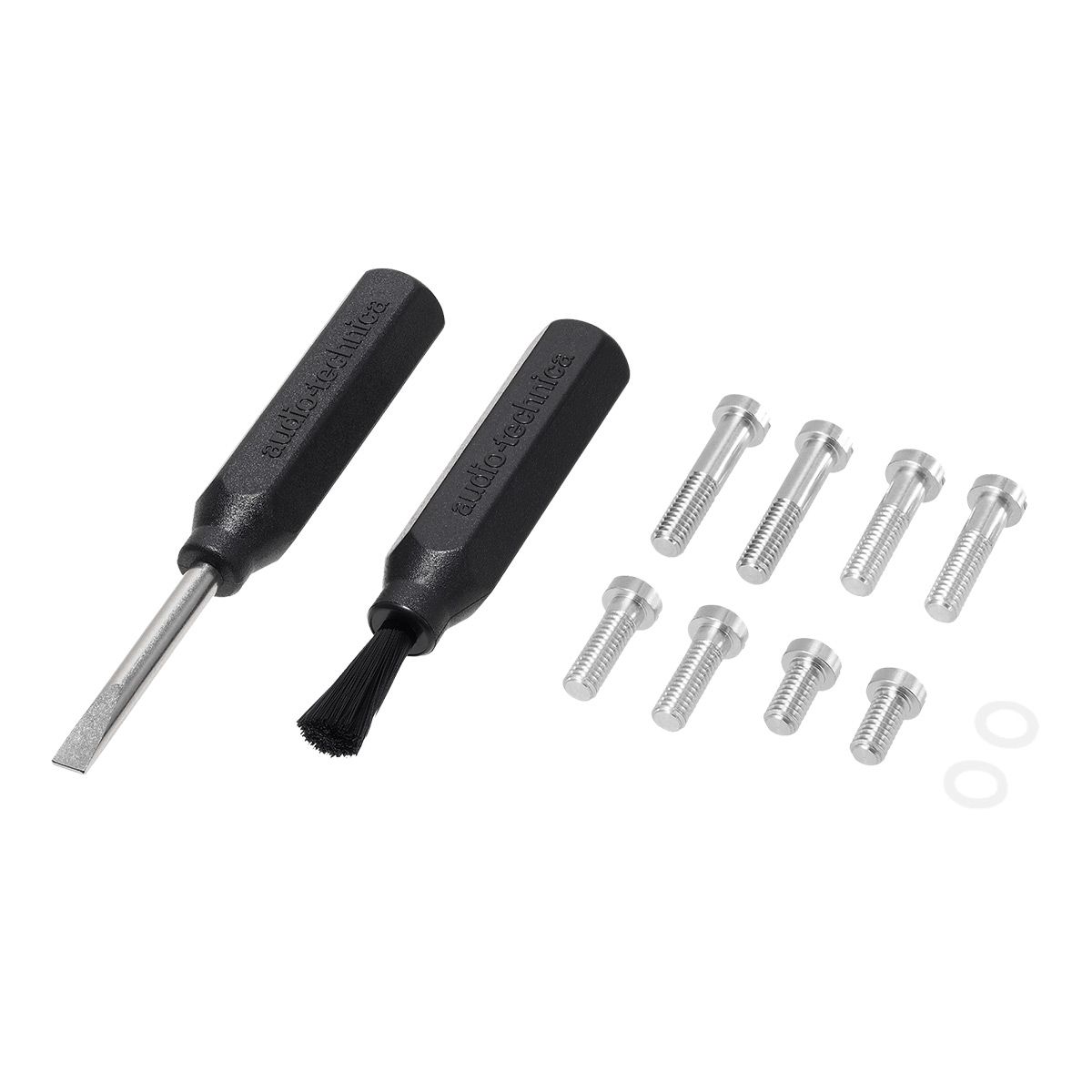

What's in the Box
•AT-OC9XEN Dual Moving Coil Cartridge
•Non-Magnetic Screwdriver
•Installation Hardware
Specifications
•Frequency Response: 20-30000 Hz
•Channel Separation: 25 dB (1 kHz)
•Vertical Tracking Angle: 20
•Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
•Stylus Construction: Nude square shank
•Recommended Load Impedance : Min. 100 ohms (when head amplifier is connected)
•Coil Impedance: 12 ohms (1 kHz)
•DC Resistance: 12 ohms
•Coil Inductance: 25 mH (1 kHz)
•Output Voltage: 0.35 mV (at 1 kHz 5 cm/sec)
•Output Channel Balance: 1.5 dB (1 kHz)
•Stylus Shape: Elliptical nude
•Cantilever: Aluminum pipe
•Static Compliance: 20 x 10-6 cm/dyne
•Dynamic Compliance: 9 x 10-6 cm/dyne (100 Hz)
•Mounting: Half-inch
•Cartridge Weight: 7.6 g
•Dimensions (W x H x D): 0.66" x 0.68" 1.01"
•Body Material: Aluminum
•Stylus Size: Nude square shank
•Terminal Pins: Brass
•Type: Dual Moving Coil
Features
•Dual Moving Coil Design
•Low Mass Nude Elliptical Stylus Aluminum Cantilever
•Pre-Threaded Cartridge Body
•Aluminum Body Minimizes Unwanted Vibration
DesignAudio quality is further enhanced by a rigid aluminum body that reduces resonance a neodymium magnet and pure iron yoke that increase the magnetic energy and the low-mass nude elliptical stylus on an aluminum cantilever that accurately tracks the record groove. The cartridge body has been pre-threaded enabling it to be mounted to a headshell or integral tonearm with just two screws no nuts required.
What's in the Box
•AT-OC9XEN Dual Moving Coil Cartridge
•Non-Magnetic Screwdriver
•Installation Hardware
Specifications
•Frequency Response: 20-30000 Hz
•Channel Separation: 25 dB (1 kHz)
•Vertical Tracking Angle: 20
•Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
•Stylus Construction: Nude square shank
•Recommended Load Impedance : Min. 100 ohms (when head amplifier is connected)
•Coil Impedance: 12 ohms (1 kHz)
•DC Resistance: 12 ohms
•Coil Inductance: 25 mH (1 kHz)
•Output Voltage: 0.35 mV (at 1 kHz 5 cm/sec)
•Output Channel Balance: 1.5 dB (1 kHz)
•Stylus Shape: Elliptical nude
•Cantilever: Aluminum pipe
•Static Compliance: 20 x 10-6 cm/dyne
•Dynamic Compliance: 9 x 10-6 cm/dyne (100 Hz)
•Mounting: Half-inch
•Cartridge Weight: 7.6 g
•Dimensions (W x H x D): 0.66" x 0.68" 1.01"
•Body Material: Aluminum
•Stylus Size: Nude square shank
•Terminal Pins: Brass
•Type: Dual Moving Coil
