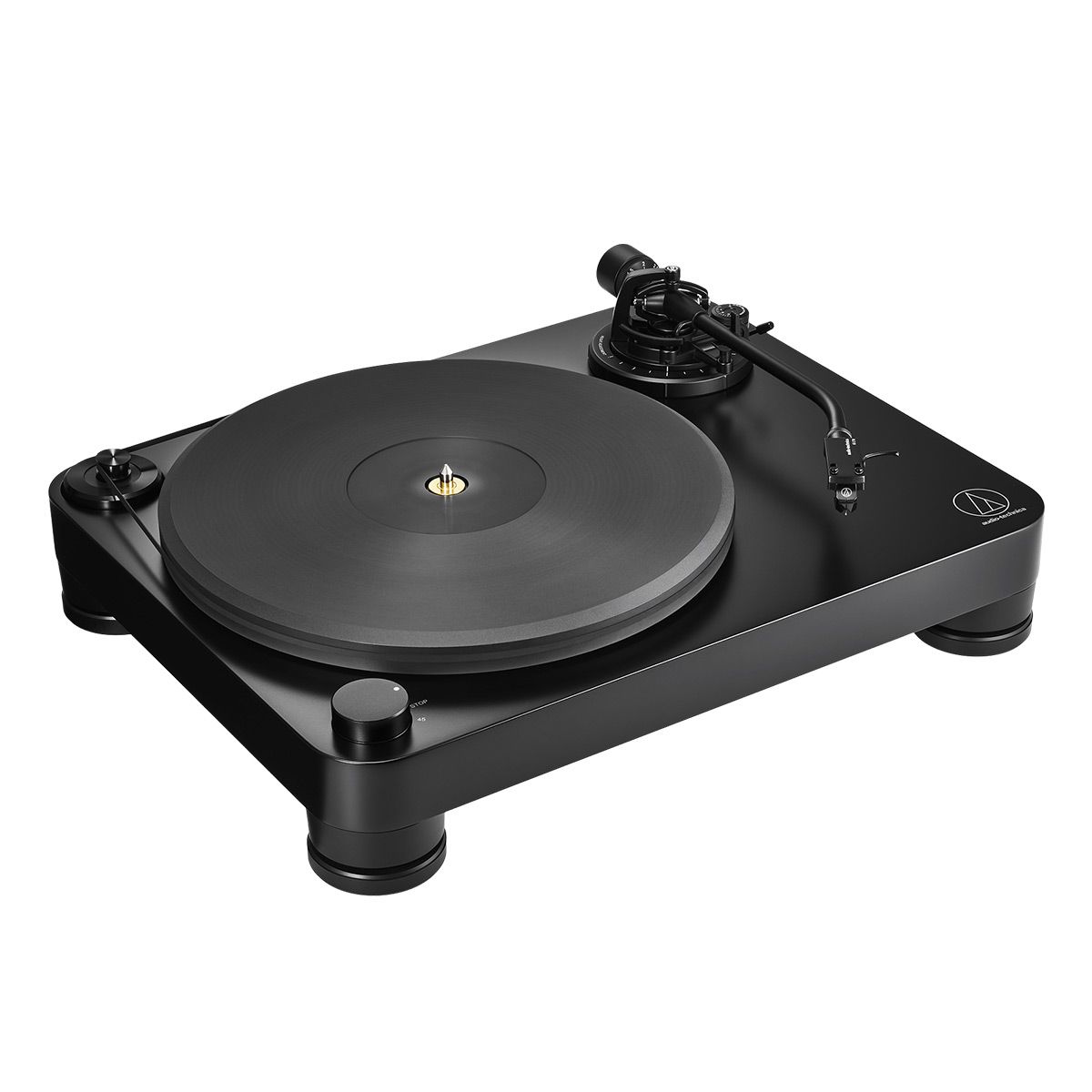

Audio-Technica AT-LP7X Manual Belt Drive Turntable with AT-VM95E MM Cartridge

The AT-LP7X fully manual belt-drive turntable blends analog excellence with style and versatility. Featuring a dense MDF plinth and acrylic platter to minimize unwanted resonance and vibration this elegant matte-black turntable delivers sound thats just as clean and refined as its appearance.

Features
•Fully Manual Belt-Drive With 33-⅓/45 RPM Speed-Sensor Accuracy
•40 mm MDF Cabinet 20 mm Acrylic Platter Minimize Vibration
•J-Shaped Tonearm with Adjustable VTA Anti-Skate
•Pre-Mounted AT-VM95E Cartridge on AT-LT10 Headshell
•Built-In MM/MC Phono Preamp

Versatile Cartridge ConfigurationCombined the turntables AT-VM95 cartridge VTA (vertical tracking angle) adjustment and 16 g subcounterweight expand your configuration options. Upgrade to a more refined VM95 stylus or experiment with different cartridge/headshell combinations (up to 23.5 g total). Add the optional 32 g subcounterweight (available separately) and work with combinations up to 28.5 g.

Acrylic PlatterThe high-density acrylic platter dampens vibrations for supremely quiet playback allowing the brilliance and detail of your vinyl records to shine through.

Smooth Accurate RotationThe stainless-steel spindle features a thermal-plastic sheet-type bearing at its base ensuring low-friction rotation thats precisely maintained at 33-1/3 or 45 RPM by the turntables speed-sensor system.

Excellent TrackingThe chassis and tonearm geometry of the AT-LP7X have been designed to ensure optimal lateral tracking for distortion-free playback.

Whats in the Box
•AT-LP7X Manual Belt-Drive Turntable with AT-VM95E MM Cartridge
•Platter
•Drive Belt
•Counterweight
•RCA Male to Dual RCA Male with Ground Cable
•45 RPM Adapter
•Removable Hinged Dust Cover
•Manual

Specifications
•Turntable
•Motor: DC servo motor
•Drive Method: Belt drive
•Speeds: 33-1/3 RPM 45 RPM
•Turntable Platter: 20 mm (0.79") thick acrylic platter
•Wow and Flutter: 0.1% (WTD) at 3 kHz (JIS)
•Signal-to-Noise Ratio: 60 dB
•Output Levels
•PHONO: 4.0 mV nominal at 1 kHz 5 cm/sec
•LINE: 252 mV nominal at 1 kHz 5 cm/sec


•Phono Pre-Amp Gain
•MM: 36 dB nominal RIAA equalized
•MC: 56 dB nominal RIAA equalized




•Tonearm Specifications
•Type: Static balanced J-shaped tonearm
•Effective Length: 247 mm (9.7")
•Overhang: 15 mm (0.59")
•Maximum Tracking Error Angle: Less than 2.0
•Tracking Force Adjustment Range: 0.0 to 4.0 g
•Applicable Cartridge Weight Range (including headshell):
•14.0 to 19.5 g (without subcounterweight)
•17.5 to 23.5 g (with subcounterweight light)
•22.0 to 28.5 g (with subcounterweight heavy*1)
•Tonearm Height Adjustment Range: 2 mm to +4 mm (using included cartridge and headshell)


•Cartridge and Headshell
•Cartridge Model: AT-VM95E BK
•Cartridge Type: VM
•Recommended Load Impedance: 47000 ohms
•Output Voltage: 4.0 mV (1 kHz 5 cm/sec)
•Stylus: 0.3 0.7 mil bonded elliptical stylus
•Cantilever: Aluminum pipe
•Tracking Force Range: 1.8 to 2.2 g (standard 2.0 g)
•Cartridge Weight: 6.1 g (0.22 oz)
•Headshell Model: AT-LT10
•Headshell Weight
•Approx. 10.7 g (0.38 oz) including lead wires
•Approx. 10.0 g (0.35 oz) excluding lead wires


•Headshell Overhang Adjustment: 5.5 mm to +2.5 mm (whe
