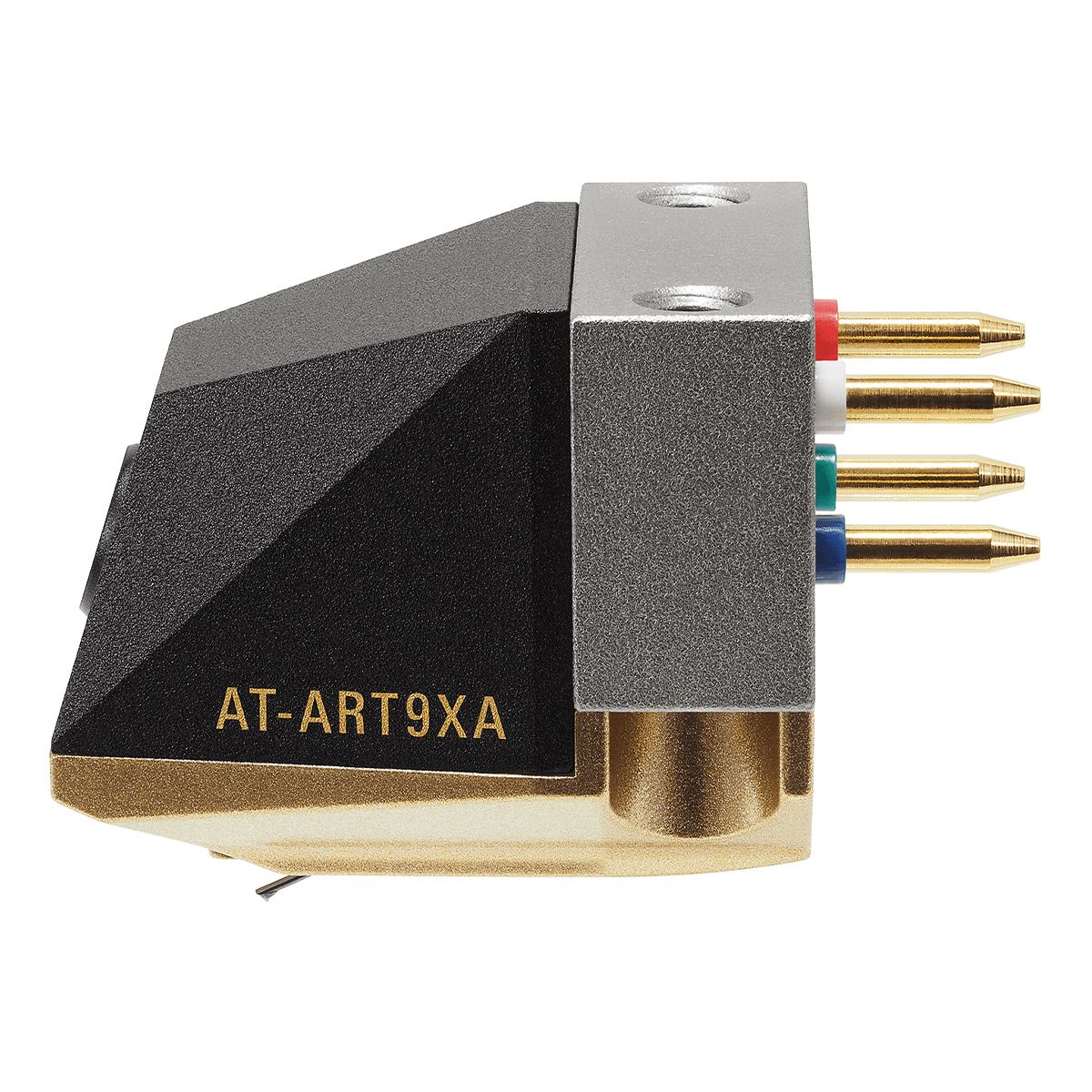

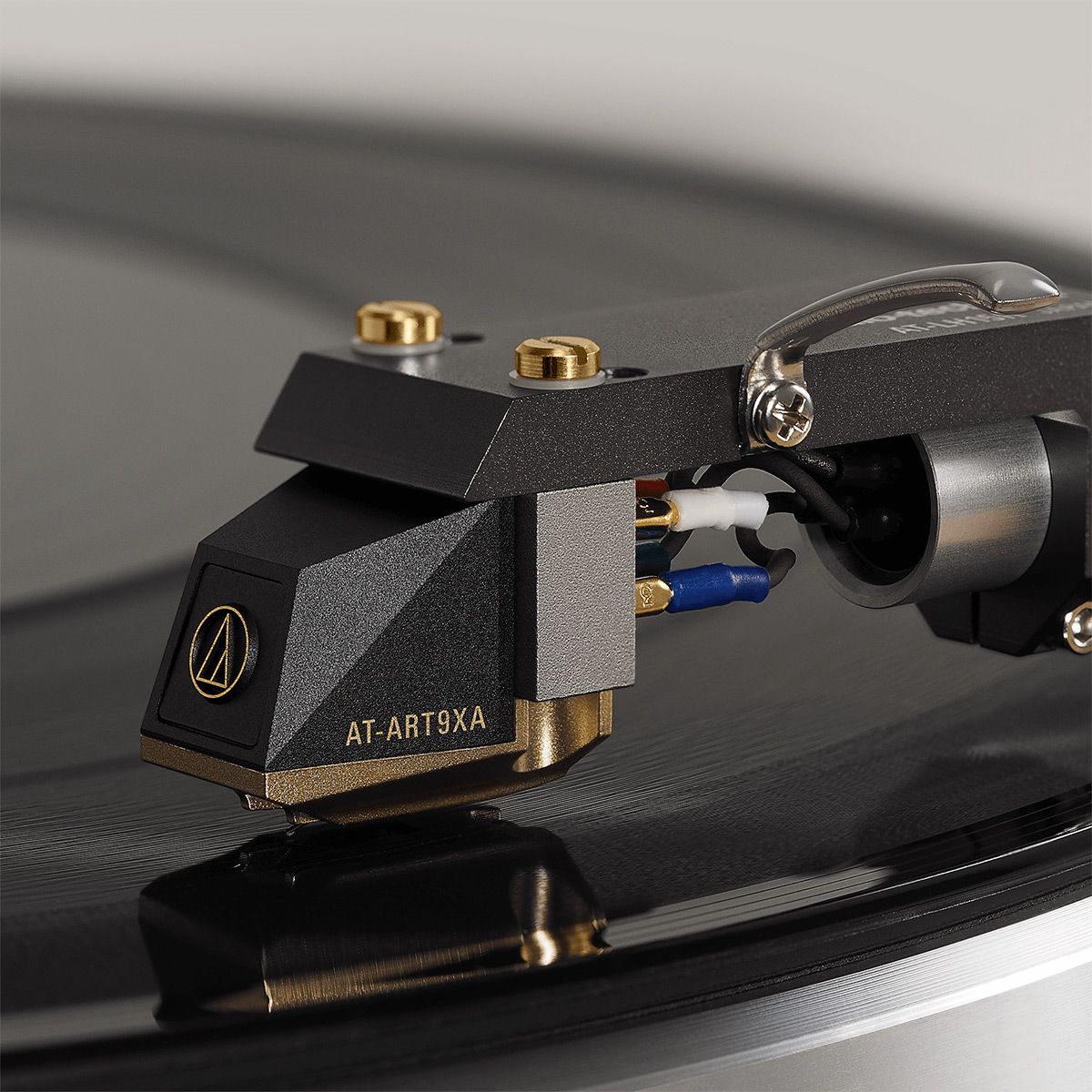

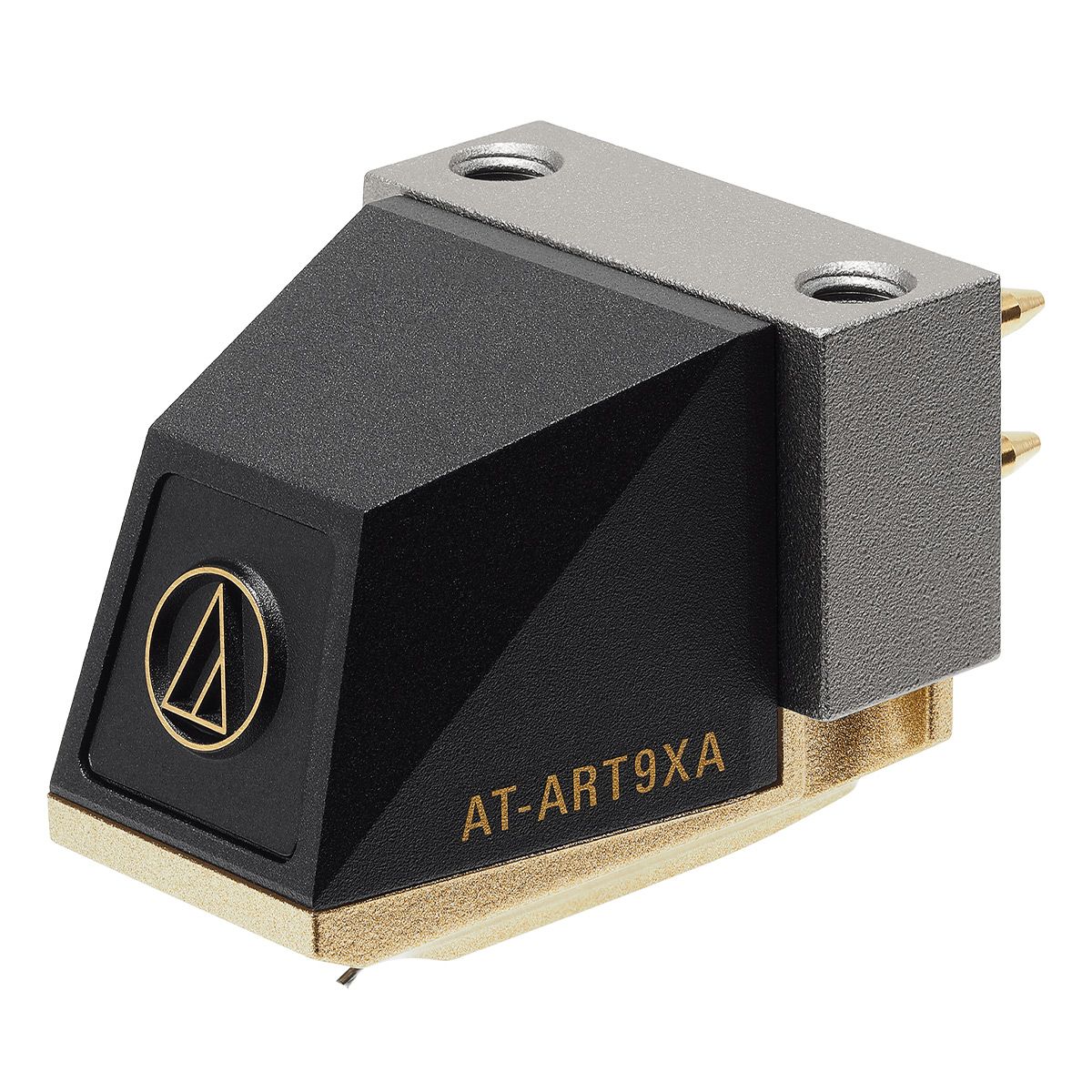

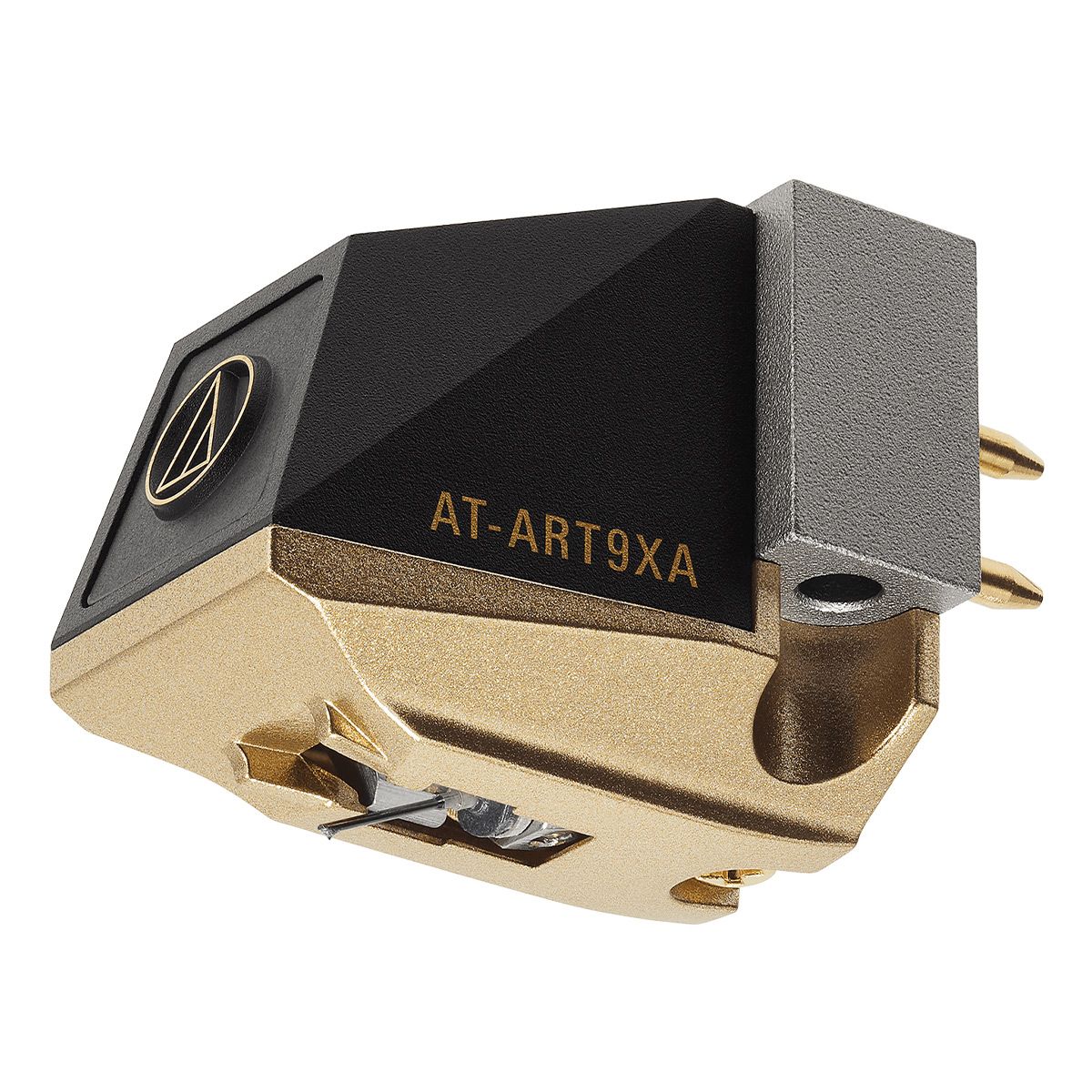

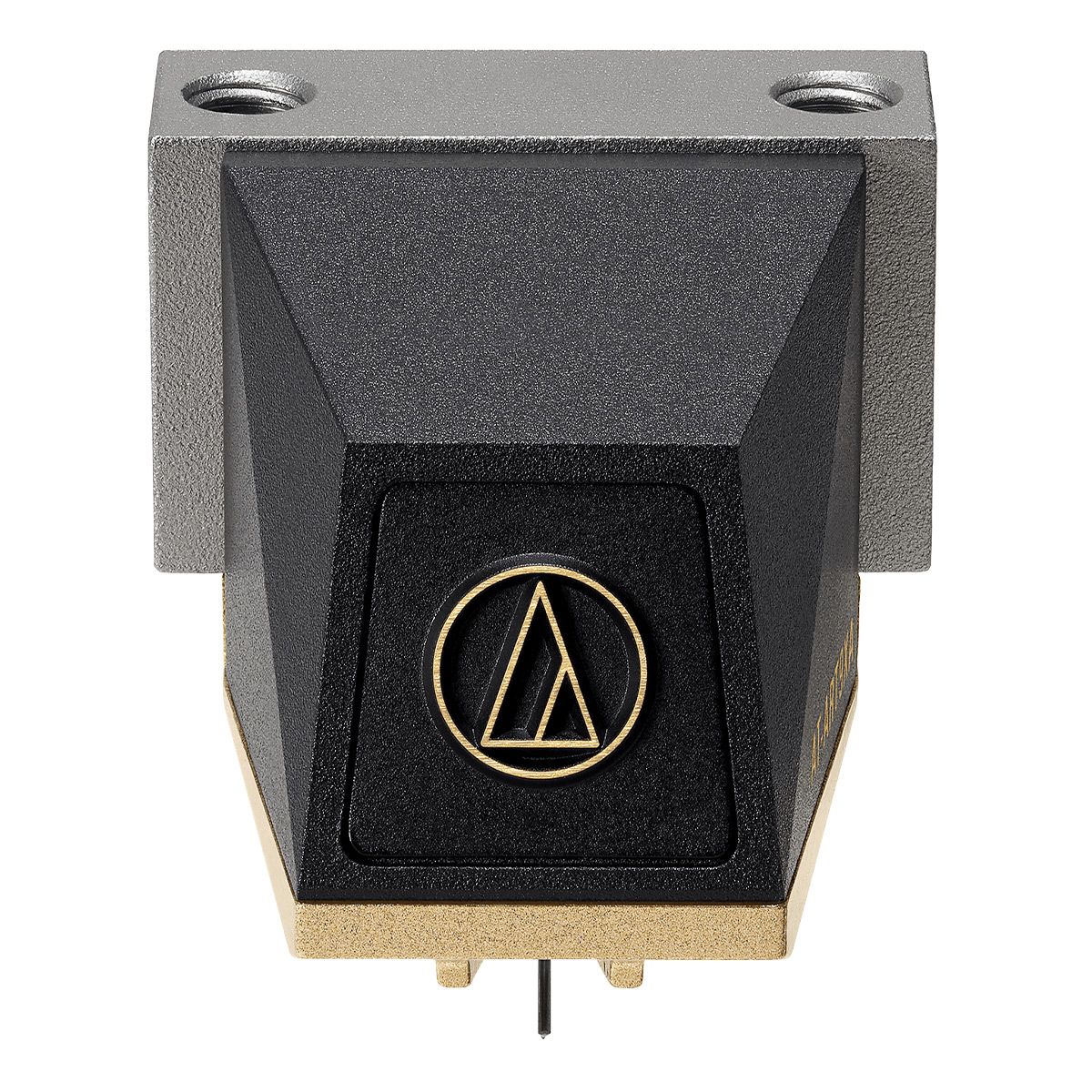

Audio-Technica AT-ART9XA Dual Moving Coil Cartridge with Non-Magnetic Core
1003837532
Starget Electronics is a leading online electronics store offering a wide range of gadg...
City: US, New York
Delivery
DHL express - Fast
1 day, Door-to-Door, Courier Delivered
from 26$
Pickup at your own expense
Tomorrow from 09:00 to 20:00, Store location
Free
Payment options
Cash, bank card, credit/installment payments, cashless payment for legal entities
Warranty and returns
Exchange/return of products of proper quality within 14 days
Official manufacturer's warranty: 12 months
Description

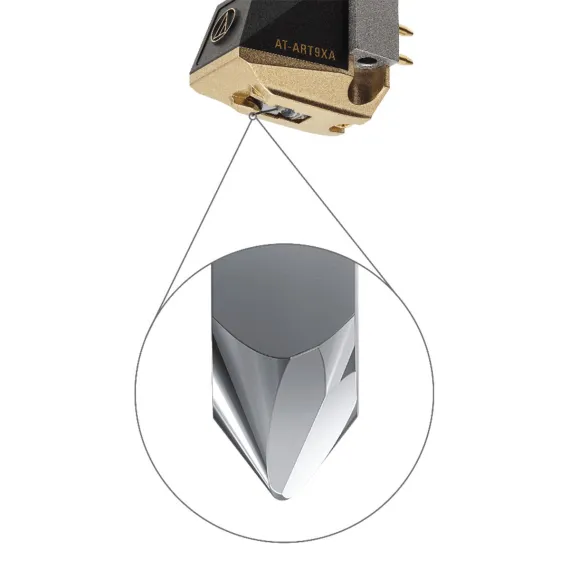

An update of the AT-ART7 the AT-ART9XA non-magnetic core MC cartridge features a Shibata stylus on a 0.28 mm diameter solid boron cantilever.
Features
•Shibata stylus
•Neodymium magnet
•Superior Spatial Representation
•Dual Moving Provide High Separation and Wide Response
•Clear Sound Localization and Minimal Distortion
•PCOCC coils ensure high-fidelity transmission
•Machined aluminum base provides excellent playback stability
•Easy installation to a headshell or integrated tonearm
ARTThe ART in the model number stands for Audio-Technica Reference Transducer a designation that they give only to their flagship phono cartridges. Compared with the magnetic core used in most MC cartridges non-magnetic core cartridges are free from magnetic distortion allowing for natural timbre and a precise sound field.
What's in the Box
•AT-ART9XA Dual Moving Coil Cartridge with Non-Magnetic Core
•Non-Magnetic Screwdriver
•(2) Washers
•Cartridge Installation Screws
Specifications
•Frequency Response: 20-50000 Hz
•Channel Separation: 30 (dB at 1 kHz)
•Vertical Tracking Angle: 20
•Vertical Tracking Force: 1.6-2.0 g (1.8 g standard)
•Stylus Construction: Nude
•Recommended Load Impedance: Min. 100 ohms (when head amplifier connected)
•Coil Impedance: 12 ohms (1 kHz)
•DC Resistance: 12 ohms
•Coil Inductance: 2.5 H (1 kHz)
•Output Voltage: 0.2 mV (1 kHz 5 cm/sec.)
•Output Channel Balance: 0.5 dB (1 kHz)
•Stylus Shape: Shibata
•Cantilever: 0.28 mm diameter solid boron
•Static Compliance: 20 x 10-6 cm/dyne
•Dynamic Compliance: 10 x 10-6 cm/dyne (100 Hz)
•Mounting: Half-inch
•Cartridge Weight: 8.5 g (0.30 oz)
•Dimensions (W x H x D): 16.8 mm (0.66") x 17.3 mm (0.68") 25.0 mm (0.98")
•Threaded Hole M2.6 x 2
Features
•Shibata stylus
•Neodymium magnet
•Superior Spatial Representation
•Dual Moving Provide High Separation and Wide Response
•Clear Sound Localization and Minimal Distortion
•PCOCC coils ensure high-fidelity transmission
•Machined aluminum base provides excellent playback stability
•Easy installation to a headshell or integrated tonearm
ARTThe ART in the model number stands for Audio-Technica Reference Transducer a designation that they give only to their flagship phono cartridges. Compared with the magnetic core used in most MC cartridges non-magnetic core cartridges are free from magnetic distortion allowing for natural timbre and a precise sound field.
What's in the Box
•AT-ART9XA Dual Moving Coil Cartridge with Non-Magnetic Core
•Non-Magnetic Screwdriver
•(2) Washers
•Cartridge Installation Screws
Specifications
•Frequency Response: 20-50000 Hz
•Channel Separation: 30 (dB at 1 kHz)
•Vertical Tracking Angle: 20
•Vertical Tracking Force: 1.6-2.0 g (1.8 g standard)
•Stylus Construction: Nude
•Recommended Load Impedance: Min. 100 ohms (when head amplifier connected)
•Coil Impedance: 12 ohms (1 kHz)
•DC Resistance: 12 ohms
•Coil Inductance: 2.5 H (1 kHz)
•Output Voltage: 0.2 mV (1 kHz 5 cm/sec.)
•Output Channel Balance: 0.5 dB (1 kHz)
•Stylus Shape: Shibata
•Cantilever: 0.28 mm diameter solid boron
•Static Compliance: 20 x 10-6 cm/dyne
•Dynamic Compliance: 10 x 10-6 cm/dyne (100 Hz)
•Mounting: Half-inch
•Cartridge Weight: 8.5 g (0.30 oz)
•Dimensions (W x H x D): 16.8 mm (0.66") x 17.3 mm (0.68") 25.0 mm (0.98")
•Threaded Hole M2.6 x 2
Features
Item Weight
.01 pounds
Brand Name
Audio-Technica
Battery
No Battery Used
Dimensions (Overall)
.68 inches (H) x .66 inches (W) x .98 inches (D)
Electronics Condition
New
Package Quantity
1
